253 - ELECTRICAL UNIT for Nissan Terrano R50

	Frame / Series R50 BODY W (WAGON) ENGINE VQ35DE (VQ35DE TYPE ENGINE) WHL.DRV F/4WD Manufacture period 07.2000 - ... GRADE SE (SE TYPE) TRANS AT (AUTOMATIC TRANSMISSION)

---

Applies for models	Manufacture period	Spec
W	07.2000 - 09.2001	ENGINE ROOM

Open full screen picture Up to the top

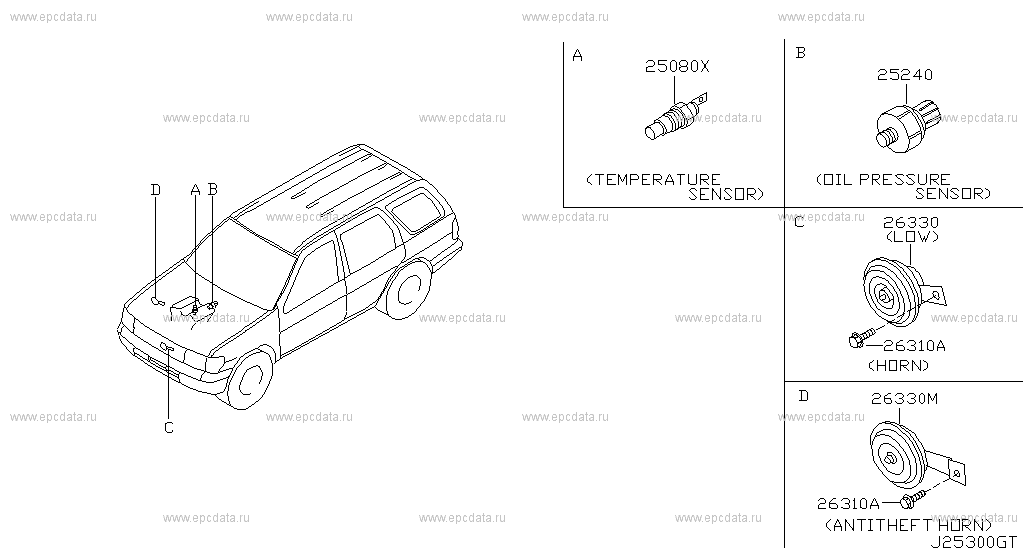

081466162G 25080X - SENSOR-TEMPERATURE 25240 - SWITCH ASSY-OIL PRESSURE 26310 - HORN ASSY-ELECTRIC HIGH 26310A - BOLT 26330 - HORN ASSY-ELECTRIC LOW 28510 - AMPLIFIER ASSY-WINDSHIELD WIPER

---

Applies for models	Manufacture period	Spec
W	09.2001 - ...	ENGINE ROOM

Open full screen picture Up to the top

25080X - SENSOR-TEMPERATURE 25240 - SWITCH ASSY-OIL PRESSURE 26310A - BOLT 26330 - HORN ASSY-ELECTRIC LOW 26330M - HORN ASSY-ANTITHEFT

---

Applies for models	Manufacture period	Spec
W	09.2001 - ...	BODY

Open full screen picture Up to the top

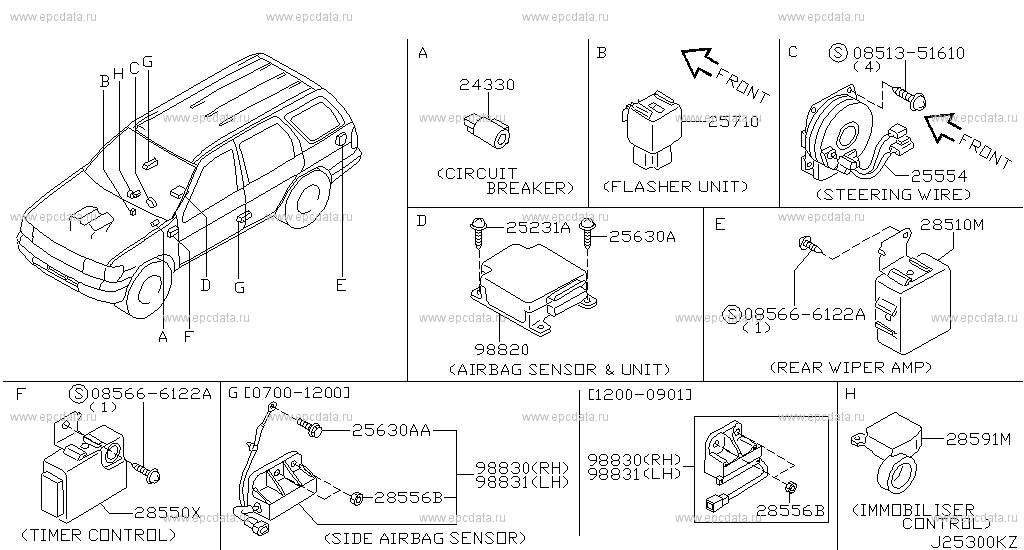

0851351610 085666122A 24330 - BREAKER ASSY-CIRCUIT,POWER WINDOW 25231A - BOLT 25554 - WIRE ASSY-STEERING AIR BAG 25630A - SCREW 25630AB - SCREW 25710 - FLASHER UNIT 28550X - CONTROLLER ASSY-TIMER 28556B - NUT 28591M - CONTROL UNIT-IMMOBILIZER 98820 - SENSOR-SIDE AIR BAG CENTER 98830 - SENSOR ASSY-SIDE AIR BAG,RH 98831 - SENSOR ASSY-SIDE AIR BAG,LH

---

Applies for models	Manufacture period	Spec
W	07.2000 - 09.2001	BODY

Open full screen picture Up to the top

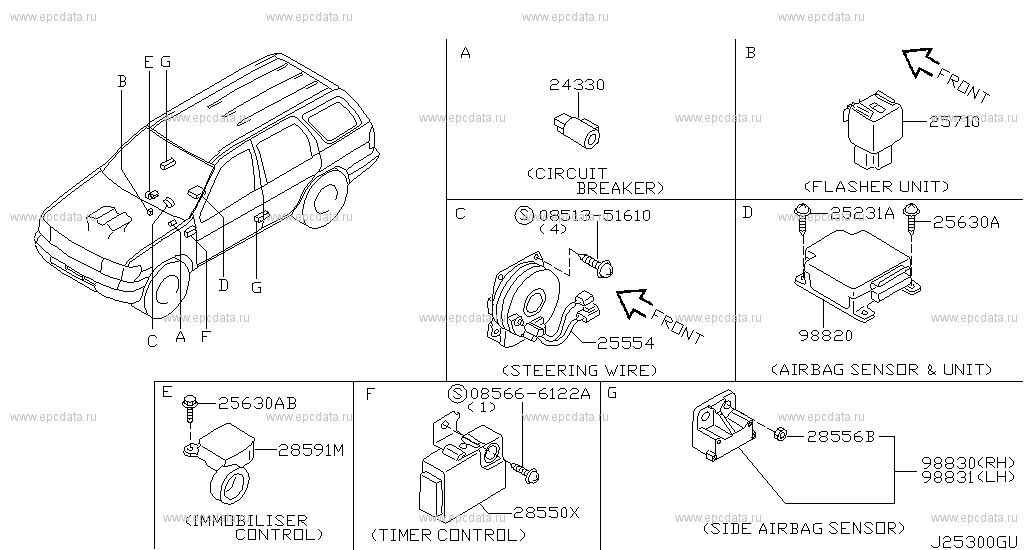

0851351610 085666122A 24330 - BREAKER ASSY-CIRCUIT,POWER WINDOW 25231A - BOLT 25554 - WIRE ASSY-STEERING AIR BAG 25630A - SCREW 25630AA - SCREW 25710 - FLASHER UNIT 28510M - AMPLIFIER ASSY-REAR WIPER 28550X - CONTROLLER ASSY-TIMER 28556B - NUT 28591M - CONTROL UNIT-IMMOBILIZER 98820 - SENSOR-SIDE AIR BAG CENTER 98830 - SENSOR ASSY-SIDE AIR BAG,RH 98831 - SENSOR ASSY-SIDE AIR BAG,LH

Terrano R50
