150 - LUBRICATING SYSTEM for Nissan Qashqai J10E

	Frame / Series J10E BODY 5H/B (5 DOOR HATCH BACK) ENGINE HR16DE (HR16DE TYPE ENGINE) AREA EUC (EUROPE GROUP C) Manufacture period 11.2011 - ... DRIVE 2WD (2 WHEEL DRIVE) GRADE ACENTA (ACENTA TYPE) TRANS MCVT (MCVT TYPE TRANS MISSION)

---

Applies for models	Manufacture period	Spec
*HR16DE	09.2010 - ...	LUBRICATING SYSTEM

Open full screen picture Up to the top

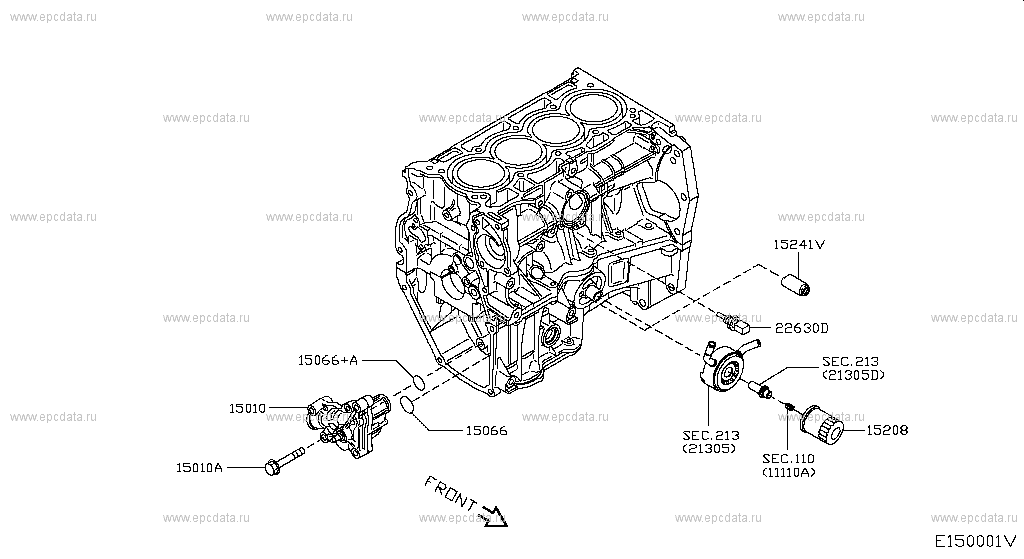

15010 - PUMP ASSY-OIL 15010A - BOLT 15066 - GASKET-OIL PUMP TO CYLINDER BLOCK 15066+A - GASKET-OIL PUMP TO CYLINDER BLOCK 15208 - FILTER ASSY-OIL 15238G - PLUG-BLIND 22630D - SENSOR ASSY-OIL TEMPERATURE

---

Applies for models	Manufacture period	Spec
*HR16DE	09.2010 - ...	LUBRICATING SYSTEM.

Open full screen picture Up to the top

15010 - PUMP ASSY-OIL 15010A - BOLT 15066 - GASKET-OIL PUMP TO CYLINDER BLOCK 15066+A - GASKET-OIL PUMP TO CYLINDER BLOCK 15208 - FILTER ASSY-OIL 15238G - PLUG-BLIND 22630D - SENSOR ASSY-OIL TEMPERATURE

---

Applies for models	Manufacture period	Spec
*HR16DE	07.2011 - ...	LUBRICATING SYSTEM..

Open full screen picture Up to the top

15010 - PUMP ASSY-OIL 15010A - BOLT 15066 - GASKET-OIL PUMP TO CYLINDER BLOCK 15066+A - GASKET-OIL PUMP TO CYLINDER BLOCK 15208 - FILTER ASSY-OIL 15238G - PLUG-BLIND 22630D - SENSOR ASSY-OIL TEMPERATURE

---

Applies for models	Manufacture period	Spec
HR16DE.MCVT	11.2011 - ...

Open full screen picture Up to the top

15010 - PUMP ASSY-OIL 15010A - BOLT 15066 - GASKET-OIL PUMP TO CYLINDER BLOCK 15066+A - GASKET-OIL PUMP TO CYLINDER BLOCK 15208 - FILTER ASSY-OIL 15241V - VALVE ASSY-RELIEF 22630D - SENSOR ASSY-OIL TEMPERATURE

Qashqai J10E
