173 - FUEL PIPING for Nissan Qashqai J10E

Frame / Series	J10E	BODY	5H/B (5 DOOR HATCH BACK)	ENGINE	K9K (K9K TYPE ENGINE)	AREA	EUC (EUROPE GROUP C)
Manufacture period	01.2010 - ...	DRIVE	2WD (2 WHEEL DRIVE)	GRADE	VISIA (VISIA TYPE)	TRANS	F6 (6 SPEED MANUAL TRANS)

Applies for models	Manufacture period	Spec
K9K	12.2006 - 01.2010	FUEL PIPING
K9K	01.2010 - ...	FUEL PIPING

17270P - TUBE ASSY-FUEL TANK OUTLET
17502Q - TUBE ASSY-FUEL FEED
17511 - TUBE-FUEL,RETURN
17511+A - TUBE-FUEL,RETURN
17528X - BRACKET-FUEL HOSE

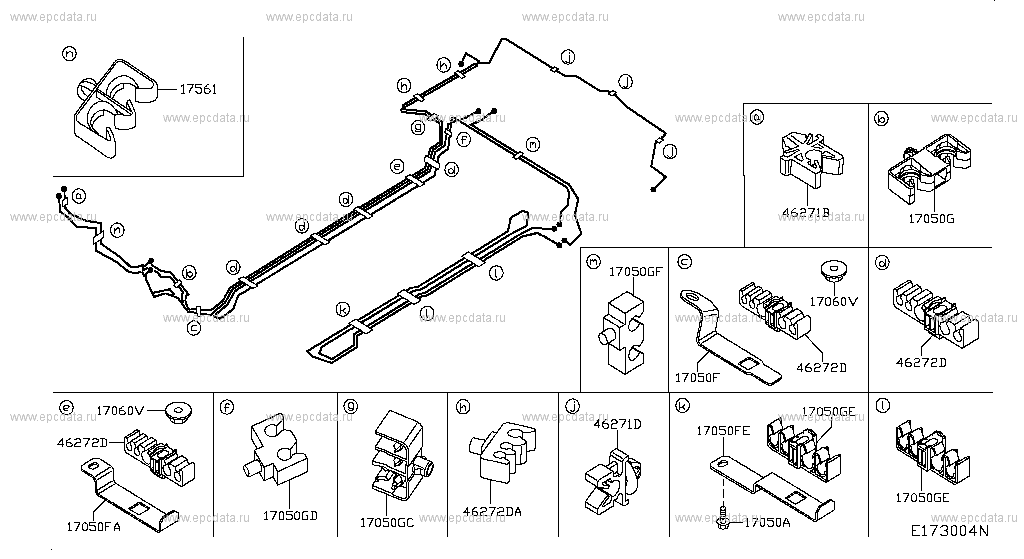

Applies for models	Manufacture period	Spec
K9K	03.2009 - 01.2010	FUEL & BRAKE PIPING
K9K	01.2010 - ...	FUEL & BRAKE PIPING

17050A - BOLT
17050F - CLAMP
17050FA - CLAMP
17050FE - CLAMP
17050G - CLIP
17050GC - CLIP
17050GD - CLIP
17050GE - CLIP
17050GF - CLIP
17060V - NUT
17561 - INSULATOR
46271B - CLIP
46271D - INSULATOR
46272D - INSULATOR
46272DA - INSULATOR

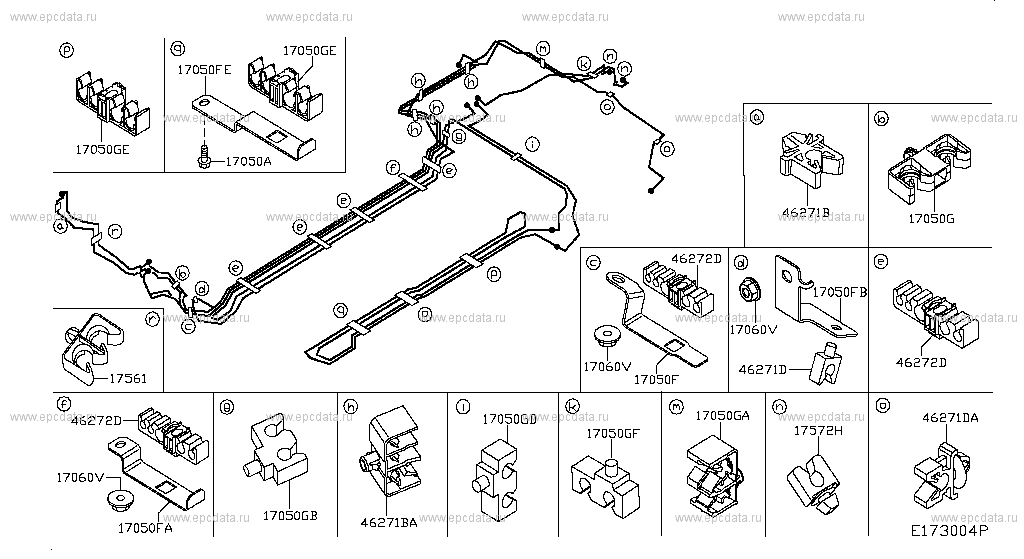

Applies for models	Manufacture period	Spec
K9K	03.2009 - 01.2010	FUEL & BRAKE PIPING W/DPF

17050A - BOLT
17050F - CLAMP
17050FA - CLAMP
17050FB - CLAMP
17050FE - CLAMP
17050G - CLIP
17050GA - CLIP
17050GB - CLIP
17050GD - CLIP
17050GE - CLIP
17050GF - CLIP
17060V - NUT
17561 - INSULATOR
17572H - CLAMP-TUBE
46271B - CLIP
46271BA - CLIP
46271D - INSULATOR
46271DA - INSULATOR
46272D - INSULATOR

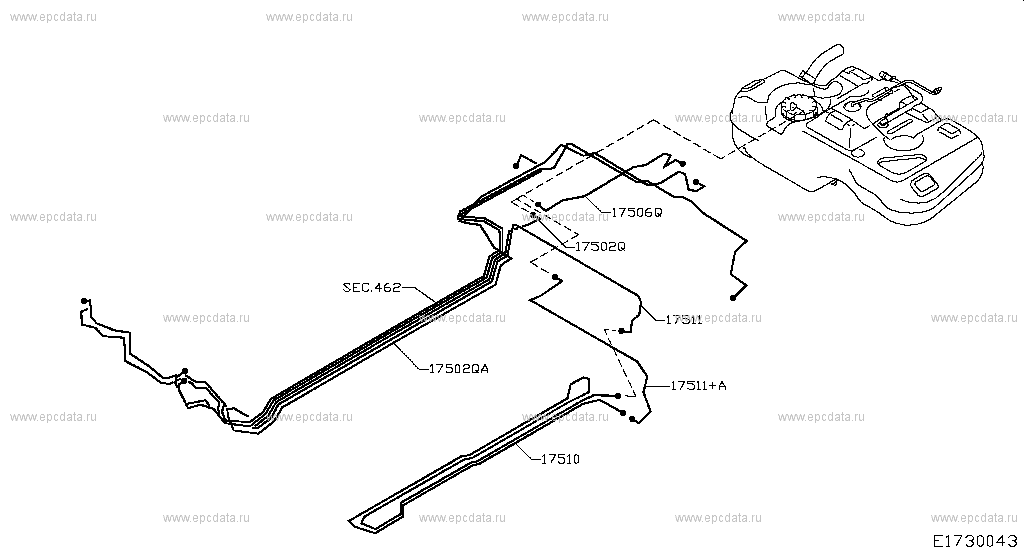

Applies for models	Manufacture period	Spec
K9K	02.2008 - 01.2010	FUEL PIPING W/DPF
K9K	01.2010 - ...	FUEL PIPING W/DPF

17502Q - TUBE ASSY-FUEL FEED
17502QA - TUBE ASSY-FUEL FEED
17506Q - TUBE-FUEL FEED
17510 - TUBE-FUEL RETURN
17511 - TUBE-FUEL,RETURN
17511+A - TUBE-FUEL,RETURN

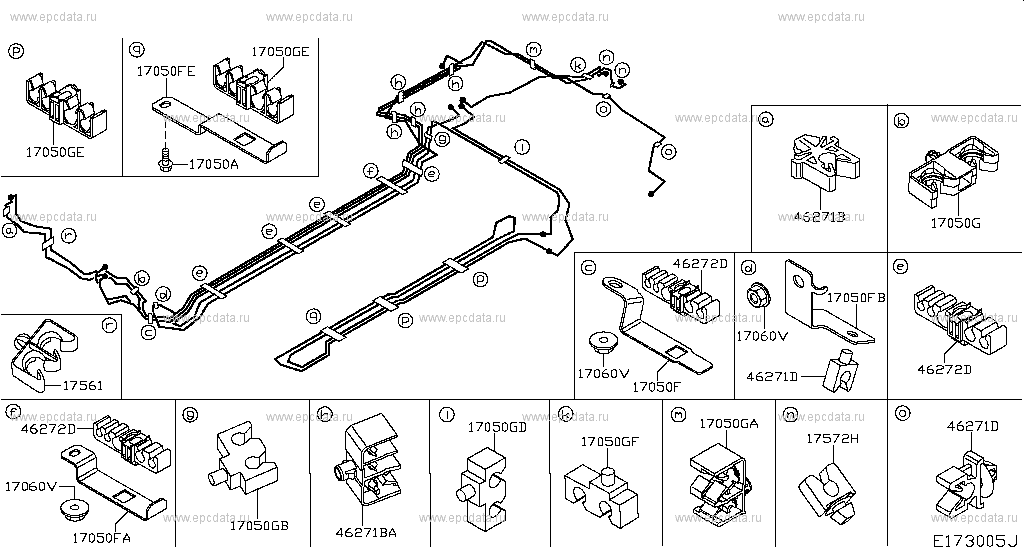

Applies for models	Manufacture period	Spec
K9K	01.2010 - ...	FUEL & BRAKE PIPING W/DPF
