Nissan EuropeQashqaiJ10E01.2010 - ...Engine mechanical130 - CAMSHAFT & VALVE MECHANISM23796: VALVE ASSY-SOLENOID,VALVE TIMING CONTROL

130 - CAMSHAFT & VALVE MECHANISM for Nissan Qashqai J10E



Frame / SeriesJ10E BODY5H/B (5 DOOR HATCH BACK)ENGINEHR16DE (HR16DE TYPE ENGINE)AREAEUC (EUROPE GROUP C)
Manufacture period01.2010 - ...DRIVE2WD (2 WHEEL DRIVE)GRADETEKNA (TEKNA TYPE)TRANSF5 (5 SPEED MANUAL TRANS)





23796: VALVE ASSY-SOLENOID,VALVE TIMING CONTROL

OEM part numberRequired
per car		 Production periodSpecCode ExteriorInterior Applies for models Notes Replacements Please order in advance In stock
23796ED00A0102.2007 - 01.2010HR16DE23796ED00B
Interchangeable		 98.77
to 142.25 USD
23796ED00B0101.2010 - ...HR16DE.F5
 98.77
to 142.25 USD
23796ED00B0109.2010 - ...DEPOF*HR16DE.F5
 98.77
to 142.25 USD
23796ED00B0107.2011 - ...DEPOF,FLPG3*HR16DE.F5
 98.77
to 142.25 USD
23796ED00B0109.2010 - ...DEPOF,IDLL2*HR16DE.F5
 98.77
to 142.25 USD

More than 1 spare part found. Please define it more accurately before ordering.



Scheme 130A_001 Scheme 130A_002 Scheme 130E_001 Scheme 130E_002 Scheme 130E_003 Scheme 130E_004 Scheme 130E_005 Scheme 130E_006
Applies for modelsManufacture periodSpec

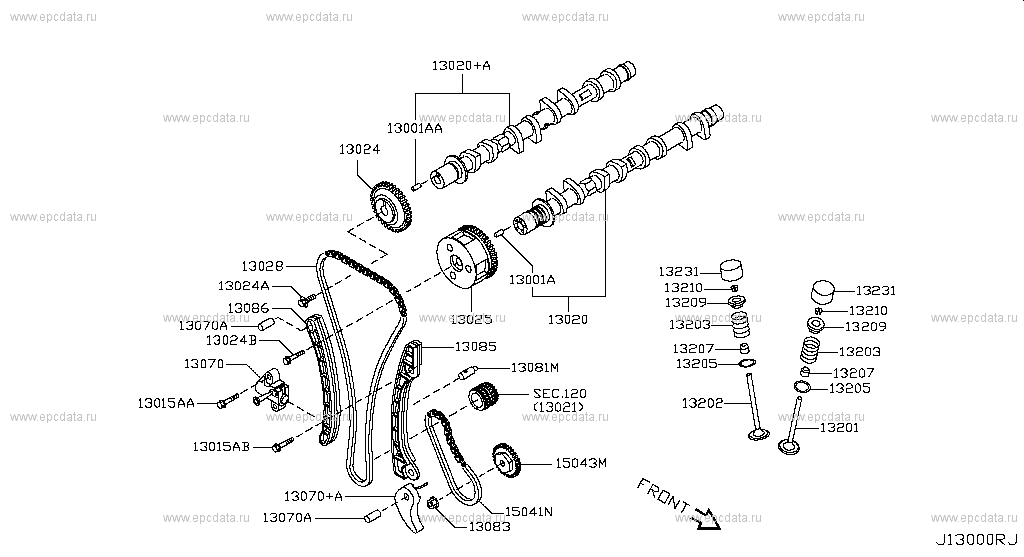

HR16DE12.2006 - 01.2010CAMSHAFT & VALVE MECHANISM
HR16DE.F501.2010 - ...CAMSHAFT & VALVE MECHANISM

Open full screen pictureOpen full screen picture
Up to the top

13001A - PIN-DOWEL
13001AA - PIN-DOWEL
13015AA - BOLT
13015AB - BOLT
13020 - CAMSHAFT ASSY
13020+A - CAMSHAFT ASSY
13024 - SPROCKET-CAMSHAFT
13024A - BOLT-SPROCKET,CAMSHAFT
13024B - BOLT-SPROCKET,CAMSHAFT
13025 - SPROCKET-CAMSHAFT,INTAKE
13028 - CHAIN-TIMING,CAMSHAFT
13070 - TENSIONER ASSY-CHAIN
13070+A - TENSIONER ASSY-CHAIN
13070A - BOLT-TENSIONER
13081M - JET-OIL
13083 - NUT-LOCK
13085 - GUIDE-CHAIN,TENSION SIDE
13086 - GUIDE-CHAIN,SLACK SIDE
13201 - VALVE-INTAKE
13202 - VALVE-EXHAUST
13203 - SPRING-VALVE,OUTER
13205 - SEAT-VALVE SPRING,OUTER
13207 - SEAL-OIL,VALVE
13209 - RETAINER-VALVE SPRING
13210 - COLLET-VALVE SPRING
13231 - LIFTER-VALVE
15041N - CHAIN-BALANCER
15043M - SPROCKET-OIL PUMP
Applies for modelsManufacture periodSpec

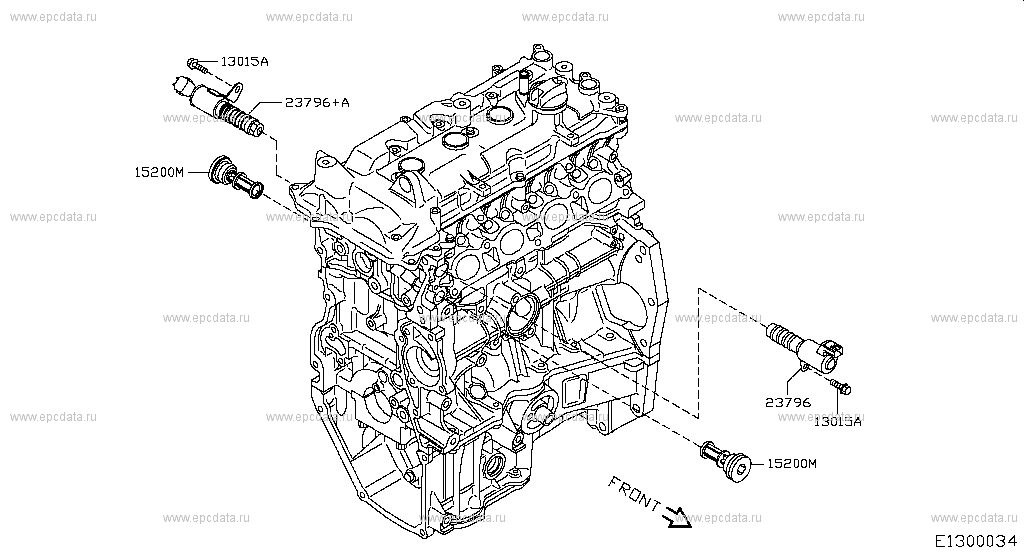

HR16DE12.2006 - 01.2010VTC SOLENOID
HR16DE.F501.2010 - ...VTC SOLENOID

Open full screen pictureOpen full screen picture
Up to the top

13015A - BOLT
15200M - FILTER ASSY-OIL
23796 - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
Applies for modelsManufacture periodSpec

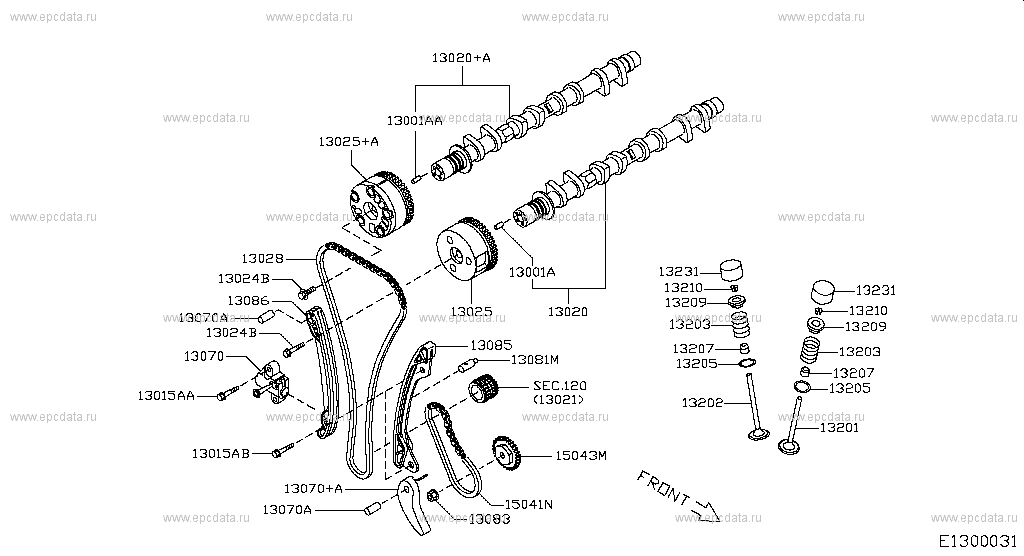

*HR16DE09.2010 - ...CAMSHAFT & VALVE MECHANISM

Open full screen pictureOpen full screen picture
Up to the top

13001A - PIN-DOWEL
13001AA - PIN-DOWEL
13015AA - BOLT
13015AB - BOLT
13020 - CAMSHAFT ASSY
13020+A - CAMSHAFT ASSY
13024B - BOLT-SPROCKET,CAMSHAFT
13025 - SPROCKET-CAMSHAFT,INTAKE
13025+A - SPROCKET-CAMSHAFT,INTAKE
13028 - CHAIN-TIMING,CAMSHAFT
13070 - TENSIONER ASSY-CHAIN
13070+A - TENSIONER ASSY-CHAIN
13070A - BOLT-TENSIONER
13081M - JET-OIL
13083 - NUT-LOCK
13085 - GUIDE-CHAIN,TENSION SIDE
13086 - GUIDE-CHAIN,SLACK SIDE
13201 - VALVE-INTAKE
13202 - VALVE-EXHAUST
13203 - SPRING-VALVE,OUTER
13205 - SEAT-VALVE SPRING,OUTER
13207 - SEAL-OIL,VALVE
13209 - RETAINER-VALVE SPRING
13210 - COLLET-VALVE SPRING
13231 - LIFTER-VALVE
15041N - CHAIN-BALANCER
15043M - SPROCKET-OIL PUMP
Applies for modelsManufacture periodSpec
*HR16DE09.2010 - ...CAMSHAFT & VALVE MECHANISM.

Open full screen pictureOpen full screen picture
Up to the top

13001A - PIN-DOWEL
13001AA - PIN-DOWEL
13015AA - BOLT
13015AB - BOLT
13020 - CAMSHAFT ASSY
13020+A - CAMSHAFT ASSY
13024B - BOLT-SPROCKET,CAMSHAFT
13025 - SPROCKET-CAMSHAFT,INTAKE
13025+A - SPROCKET-CAMSHAFT,INTAKE
13028 - CHAIN-TIMING,CAMSHAFT
13070 - TENSIONER ASSY-CHAIN
13070+A - TENSIONER ASSY-CHAIN
13070A - BOLT-TENSIONER
13081M - JET-OIL
13083 - NUT-LOCK
13085 - GUIDE-CHAIN,TENSION SIDE
13086 - GUIDE-CHAIN,SLACK SIDE
13201 - VALVE-INTAKE
13202 - VALVE-EXHAUST
13203 - SPRING-VALVE,OUTER
13205 - SEAT-VALVE SPRING,OUTER
13207 - SEAL-OIL,VALVE
13209 - RETAINER-VALVE SPRING
13210 - COLLET-VALVE SPRING
13231 - LIFTER-VALVE
15041N - CHAIN-BALANCER
15043M - SPROCKET-OIL PUMP
Applies for modelsManufacture periodSpec
*HR16DE.F507.2011 - ...CAMSHAFT & VALVE MECHANISM..

Open full screen pictureOpen full screen picture
Up to the top

13001A - PIN-DOWEL
13001AA - PIN-DOWEL
13015AA - BOLT
13015AB - BOLT
13020 - CAMSHAFT ASSY
13020+A - CAMSHAFT ASSY
13024B - BOLT-SPROCKET,CAMSHAFT
13025 - SPROCKET-CAMSHAFT,INTAKE
13025+A - SPROCKET-CAMSHAFT,INTAKE
13028 - CHAIN-TIMING,CAMSHAFT
13070 - TENSIONER ASSY-CHAIN
13070+A - TENSIONER ASSY-CHAIN
13070A - BOLT-TENSIONER
13081M - JET-OIL
13083 - NUT-LOCK
13085 - GUIDE-CHAIN,TENSION SIDE
13086 - GUIDE-CHAIN,SLACK SIDE
13201 - VALVE-INTAKE
13202 - VALVE-EXHAUST
13203 - SPRING-VALVE,OUTER
13205 - SEAT-VALVE SPRING,OUTER
13207 - SEAL-OIL,VALVE
13209 - RETAINER-VALVE SPRING
13210 - COLLET-VALVE SPRING
13231 - LIFTER-VALVE
15041N - CHAIN-BALANCER
15043M - SPROCKET-OIL PUMP
Applies for modelsManufacture periodSpec
*HR16DE09.2010 - ...SELECT CAMSHAFT.

Open full screen pictureOpen full screen picture
Up to the top

13015A - BOLT
15200M - FILTER ASSY-OIL
23796 - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
23796+A - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
Applies for modelsManufacture periodSpec
*HR16DE09.2010 - ...SELECT CAMSHAFT

Open full screen pictureOpen full screen picture
Up to the top

13015A - BOLT
15200M - FILTER ASSY-OIL
23796 - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
23796+A - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
Applies for modelsManufacture periodSpec
*HR16DE.F507.2011 - ...SELECT CAMSHAFT..

Open full screen pictureOpen full screen picture
Up to the top

13015A - BOLT
15200M - FILTER ASSY-OIL
23796 - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
23796+A - VALVE ASSY-SOLENOID,VALVE TIMING CONTROL
