226 - ENGINE CONTROL MODULE for Nissan Qashqai J10E

	Frame / Series J10E BODY 5H/B (5 DOOR HATCH BACK) ENGINE HR16DE (HR16DE TYPE ENGINE) AREA EUC (EUROPE GROUP C) Manufacture period 01.2010 - ... DRIVE 2WD (2 WHEEL DRIVE) GRADE TEKNA (TEKNA TYPE) TRANS F5 (5 SPEED MANUAL TRANS)

---

Applies for models	Manufacture period	Spec
HR16DE	12.2006 - 01.2010
HR16DE	01.2010 - ...	EURO4

Open full screen picture Up to the top

22060P - KNOCK SENSOR 22611 - ENGINE CONTROL MODULE 22611A - SCREW 22612 - BRACKET-CONTROL UNIT 22612+A - BRACKET-CONTROL UNIT 22652D - BOLT 22652DA - BOLT 22690 - HEATED OXYGEN SENSOR 22690N - HEATED OXYGEN SENSOR,REAR 23790B - NUT 24210VA - CLAMP

---

Applies for models	Manufacture period	Spec
HR16DE	01.2010 - ...	EURO5

Open full screen picture Up to the top

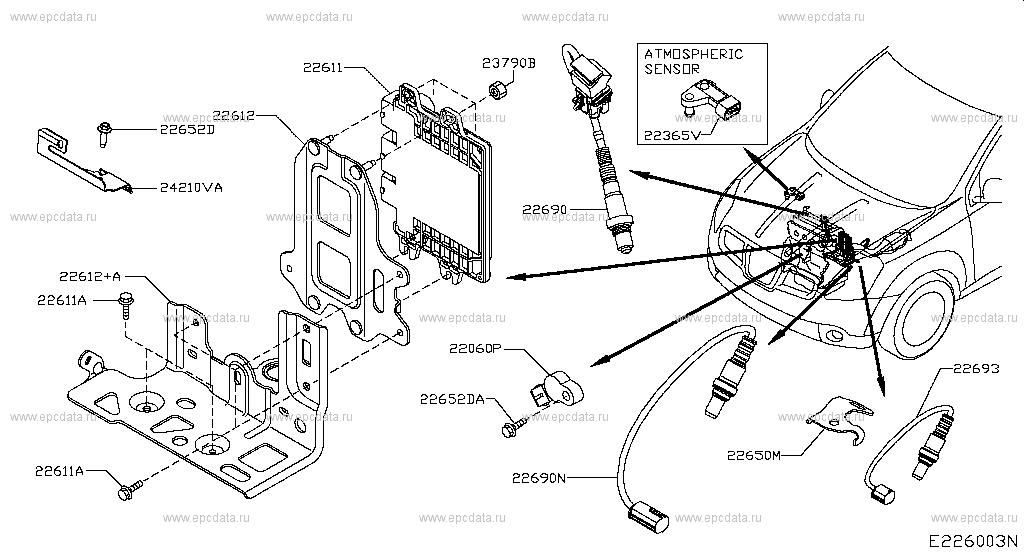

22060P - KNOCK SENSOR 22365V - SENSOR ASSY-BOOST PRESSURE 22611 - ENGINE CONTROL MODULE 22611A - SCREW 22612 - BRACKET-CONTROL UNIT 22612+A - BRACKET-CONTROL UNIT 22650M - BRACKET 22652D - BOLT 22652DA - BOLT 22690 - HEATED OXYGEN SENSOR 22690N - HEATED OXYGEN SENSOR,REAR 22693 - AIR FUEL RATIO SENSOR 23790B - NUT 24210VA - CLAMP

Qashqai J10E
