275 - COMPRESSOR MOUNTING & FITTING for Nissan Qashqai J10E

	Frame / Series J10E BODY 5H/B (5 DOOR HATCH BACK) ENGINE HR16DE (HR16DE TYPE ENGINE) AREA EUC (EUROPE GROUP C) Manufacture period 01.2010 - ... DRIVE 2WD (2 WHEEL DRIVE) GRADE TEKNA (TEKNA TYPE) TRANS F5 (5 SPEED MANUAL TRANS)

---

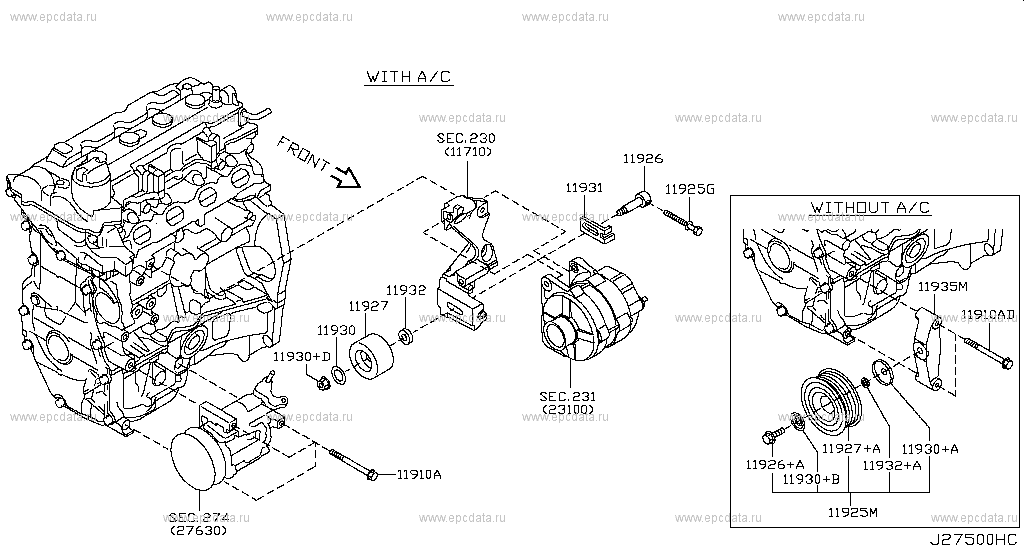

Applies for models	Manufacture period	Spec
HR16DE	12.2006 - 01.2010

Open full screen picture Up to the top

11910A - BOLT 11910AD - BOLT 11925G - BOLT-ADJUST 11925M - PULLEY ASSY-IDLER,COMPRESSOR 11926 - SHAFT-IDLER PULLEY 11926+A - SHAFT-IDLER PULLEY 11927 - PULLEY-IDLER 11927+A - PULLEY-IDLER 11930 - COVER-IDLER PULLEY 11930+A - COVER-IDLER PULLEY 11930+B - COVER-IDLER PULLEY 11930+D - COVER-IDLER PULLEY 11931 - SPACER-IDLER PULLEY 11932 - COLLAR-IDLER PULLEY 11932+A - COLLAR-IDLER PULLEY 11935M - BRACKET-IDLER PULLEY

---

Applies for models	Manufacture period	Spec
HR16DE.F5	01.2010 - ...

Open full screen picture Up to the top

11910A - BOLT 11925G - BOLT-ADJUST 11926 - SHAFT-IDLER PULLEY 11927 - PULLEY-IDLER 11930 - COVER-IDLER PULLEY 11930+D - COVER-IDLER PULLEY 11931 - SPACER-IDLER PULLEY 11932 - COLLAR-IDLER PULLEY

---

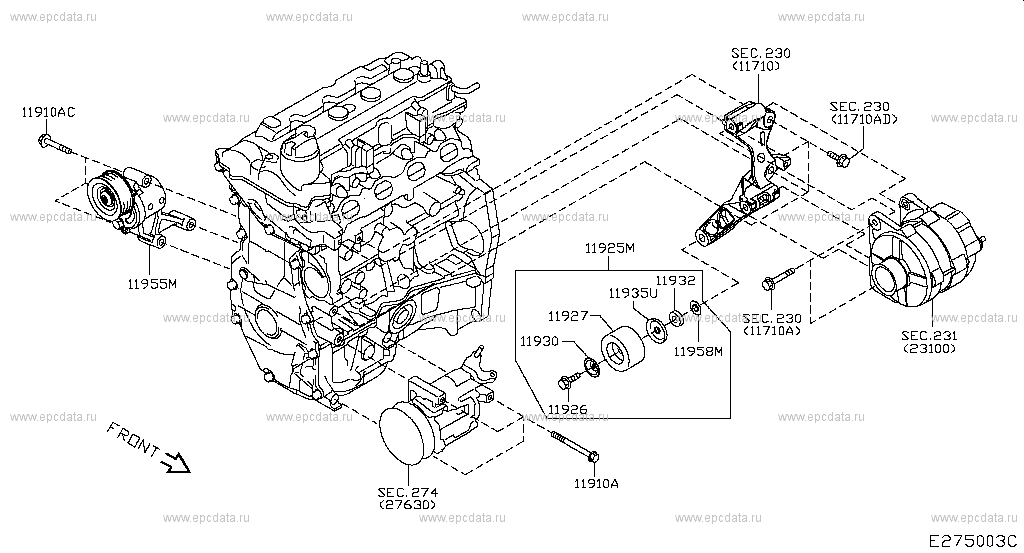

Applies for models	Manufacture period	Spec
*HR16DE	09.2010 - ...	COMPRESSOR MTG, FITTING

Open full screen picture Up to the top

11910A - BOLT 11910AC - BOLT 11925M - PULLEY ASSY-IDLER,COMPRESSOR 11926 - SHAFT-IDLER PULLEY 11927 - PULLEY-IDLER 11930 - COVER-IDLER PULLEY 11932 - COLLAR-IDLER PULLEY 11935U - NUT 11955M - TENSIONER ASSY-AUTO 11958M - STOPPER-IDLER

---

Applies for models	Manufacture period	Spec
*HR16DE	09.2010 - ...	COMPRESSOR MTG, FITTING.

Open full screen picture Up to the top

11910A - BOLT 11910AC - BOLT 11925M - PULLEY ASSY-IDLER,COMPRESSOR 11926 - SHAFT-IDLER PULLEY 11927 - PULLEY-IDLER 11930 - COVER-IDLER PULLEY 11932 - COLLAR-IDLER PULLEY 11935U - NUT 11955M - TENSIONER ASSY-AUTO 11958M - STOPPER-IDLER

---

Applies for models	Manufacture period	Spec
*HR16DE.F5	07.2011 - ...	COMPRESSOR MTG, FITTING..

Open full screen picture Up to the top

11910A - BOLT 11910AC - BOLT 11925M - PULLEY ASSY-IDLER,COMPRESSOR 11926 - SHAFT-IDLER PULLEY 11927 - PULLEY-IDLER 11930 - COVER-IDLER PULLEY 11932 - COLLAR-IDLER PULLEY 11935U - NUT 11955M - TENSIONER ASSY-AUTO 11958M - STOPPER-IDLER

Qashqai J10E
