120 - PISTON,CRANKSHAFT & FLYWHEEL for Nissan Qashqai J10E

	Frame / Series J10E BODY 5H/B (5 DOOR HATCH BACK) ENGINE MR20DE (MR20DE TYPE ENGINE) AREA EUC (EUROPE GROUP C) Manufacture period 01.2010 - ... DRIVE 2WD (2 WHEEL DRIVE) GRADE ACENTA (ACENTA TYPE) TRANS MCVT (MCVT TYPE TRANS MISSION)

---

Applies for models	Manufacture period	Spec

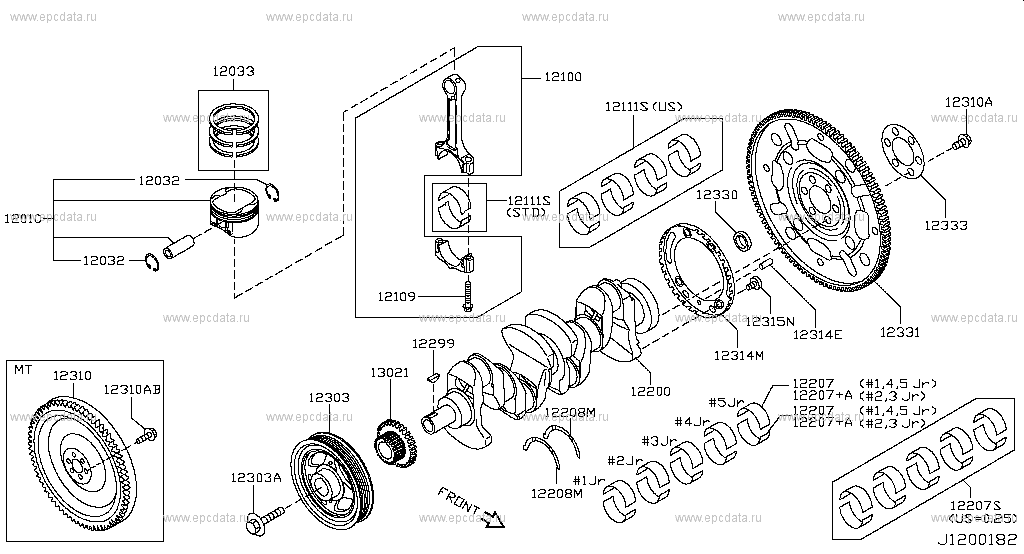

MR20DE	01.2010 - ...	ILLUSTRATION

Open full screen picture Up to the top

12010 - PISTON,W/PIN 12032 - RING-SNAP,PISTON PIN 12033 - RING SET-PISTON 12100 - ROD COMPL-CONNECTING 12109 - BOLT-CONNECTING ROD 12111S - BEARING SET-CONNECTING ROD 12200 - CRANKSHAFT ASSY 12207 - BEARING-CRANKSHAFT 12207+A - BEARING-CRANKSHAFT 12207S - BEARING SET-CRANKSHAFT 12208M - WASHER-THRUST 12299 - SHIM-CRANK SPROCKET 12303 - PULLEY-CRANKSHAFT 12303A - BOLT-PULLEY,CRANKSHAFT 12310 - FLYWHEEL ASSY 12310A - BOLT-FLYWHEEL 12310AB - BOLT-FLYWHEEL 12314E - DOWEL-PIN 12314M - PLATE-SIGNAL 12315N - BOLT-SIGNAL PLATE 12330 - PILOT-CONVERTER 12331 - PLATE ASSY-DRIVE & GEAR 12333 - PLATE-CRANKSHAFT TO CONVERTER 13021 - SPROCKET-CRANKSHAFT

---

Applies for models	Manufacture period	Spec
MR20DE	12.2006 - 01.2010	ILLUSTRATION

Open full screen picture Up to the top

12010 - PISTON,W/PIN 12032 - RING-SNAP,PISTON PIN 12033 - RING SET-PISTON 12100 - ROD COMPL-CONNECTING 12109 - BOLT-CONNECTING ROD 12111S - BEARING SET-CONNECTING ROD 12200 - CRANKSHAFT ASSY 12207 - BEARING-CRANKSHAFT 12207+A - BEARING-CRANKSHAFT 12207S - BEARING SET-CRANKSHAFT 12208M - WASHER-THRUST 12299 - SHIM-CRANK SPROCKET 12303 - PULLEY-CRANKSHAFT 12303A - BOLT-PULLEY,CRANKSHAFT 12310 - FLYWHEEL ASSY 12310A - BOLT-FLYWHEEL 12310AB - BOLT-FLYWHEEL 12314E - DOWEL-PIN 12314M - PLATE-SIGNAL 12315N - BOLT-SIGNAL PLATE 12330 - PILOT-CONVERTER 12331 - PLATE ASSY-DRIVE & GEAR 12333 - PLATE-CRANKSHAFT TO CONVERTER 13021 - SPROCKET-CRANKSHAFT
