310 - AUTO TRANSMISSION,TRANSAXLE & FITTING for Nissan Patrol Y62

	Frame / Series Y62 BODY 2ROW (WAGON 2ROW) ENGINE VK56VD (VK56VD TYPE ENGINE) DRIVE AWD (4 WHEEL DRIVE) Manufacture period 03.2010 - ... DEST RUS (RUSSIA) GRADE LE (LE GRADE) TRANS 7AT (7 AUTOMATIC TRANSMISSION)

---

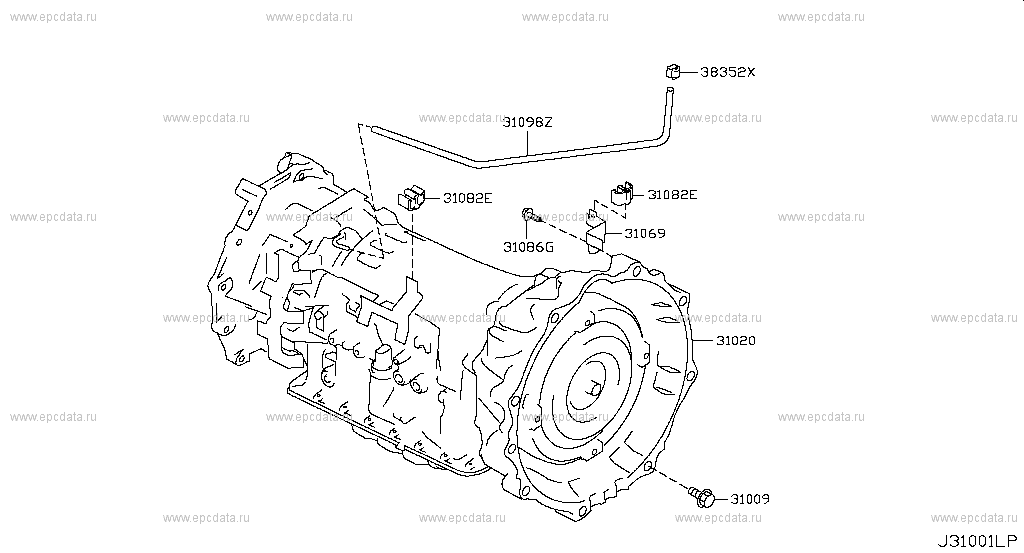

Applies for models	Manufacture period	Spec
7AT	03.2010 - 08.2010	ASSEMBLY & FITTING PARTS

Open full screen picture Up to the top

31009 - BOLT-SELF LOCK 31020 - TRANSMISSION ASSY-AUTOMATIC 31069 - BRACKET 31082E - CLIP 31086G - BOLT 31098Z - HOSE-BREATHER 38352X - BREATHER

---

Applies for models	Manufacture period	Spec
7AT	03.2010 - ...	OIL COOLER TUBE PARTS

Open full screen picture Up to the top

21305Y - COOLER ASSY-OIL 21621 - TUBE ASSY-OIL COOLER 21622M - TUBE-OIL COOLER 21623 - TUBE ASSY-OIL COOLER 21624M - TUBE-OIL COOLER 21625 - BOLT-CONNECTOR 21626 - WASHER-SEAL 21633N - HOSE-OIL COOLER 21633NA - HOSE-OIL COOLER 21633NB - HOSE-OIL COOLER 21636M - HOSE-OIL COOLER TO ENGINE 21647 - CLAMP-TUBE 31020 - TRANSMISSION ASSY-AUTOMATIC 31081A - BOLT 31088A - BOLT 31088F - CLAMP 31088FA - CLAMP 31088FB - CLAMP 31181E - CLAMP

---

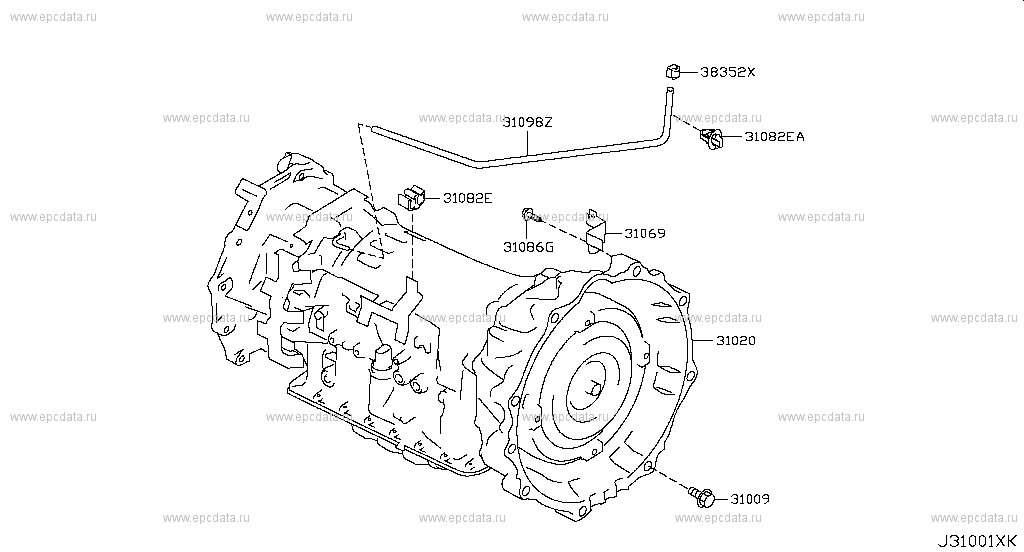

Applies for models	Manufacture period	Spec
7AT	08.2010 - ...	ASSEMBLY & FITTING PARTS

Open full screen picture Up to the top

31009 - BOLT-SELF LOCK 31020 - TRANSMISSION ASSY-AUTOMATIC 31069 - BRACKET 31082E - CLIP 31082EA - CLIP 31086G - BOLT 31098Z - HOSE-BREATHER 38352X - BREATHER

Patrol Y62
