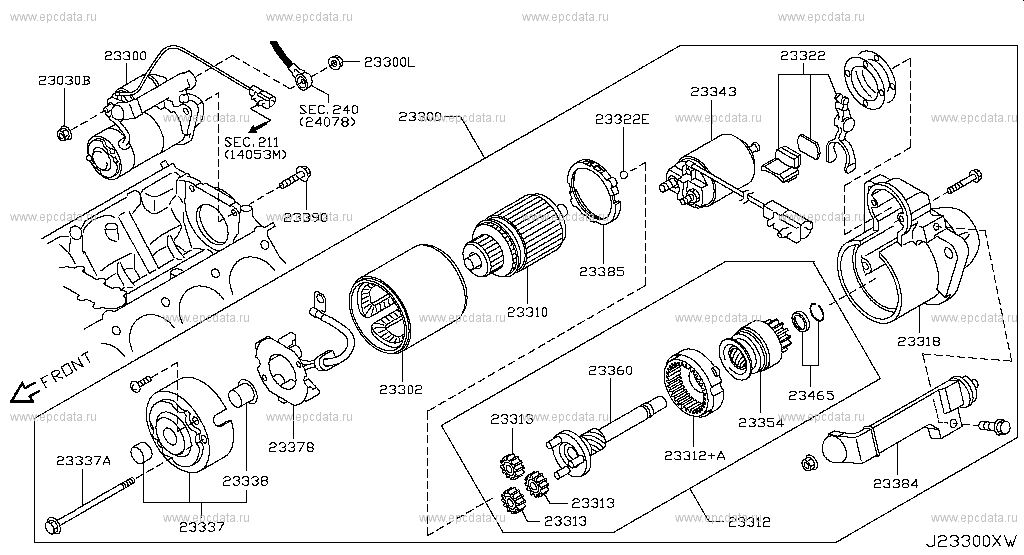

233 - STARTER MOTOR for Nissan Patrol Y62

	Frame / Series Y62 BODY 2ROW (WAGON 2ROW) ENGINE VK56VD (VK56VD TYPE ENGINE) DRIVE AWD (4 WHEEL DRIVE) Manufacture period 03.2010 - ... DEST RUS (RUSSIA) GRADE LE (LE GRADE) TRANS 7AT (7 AUTOMATIC TRANSMISSION)

Applies for models	Manufacture period	Spec
VK56VD	03.2010 - 07.2011
VK56VD	07.2011 - ...	STARTER MOTOR

Open full screen picture

23030B - NUT 23300 - MOTOR ASSY-STARTER 23300L - NUT 23302 - YOKE ASSY 23310 - ARMATURE ASSY 23312 - PINION ASSY 23312+A - PINION ASSY 23313 - GEAR 23318 - CASE ASSY-GEAR 23322 - LEVER SET-SHIFT 23322E - BALL-SHIFT LEVER 23337 - COVER ASSY-REAR 23337A - BOLT-THROUGH 23338 - METAL-REAR COVER 23343 - SWITCH ASSY-MAGNETIC 23354 - CLUTCH ASSY 23360 - GEAR & SHAFT SET 23378 - HOLDER ASSY-BRUSH 23384 - TERMINAL ASSY 23385 - PACKING 23390 - BOLT 23465 - STOPPER SET-PINION

Patrol Y62
