252 - RELAY for Nissan Patrol Y62

	Frame / Series Y62 BODY 2ROW (WAGON 2ROW) ENGINE VK56VD (VK56VD TYPE ENGINE) DRIVE AWD (4 WHEEL DRIVE) Manufacture period 03.2010 - ... DEST RUS (RUSSIA) GRADE LE (LE GRADE) TRANS 7AT (7 AUTOMATIC TRANSMISSION)

---

Applies for models	Manufacture period	Spec

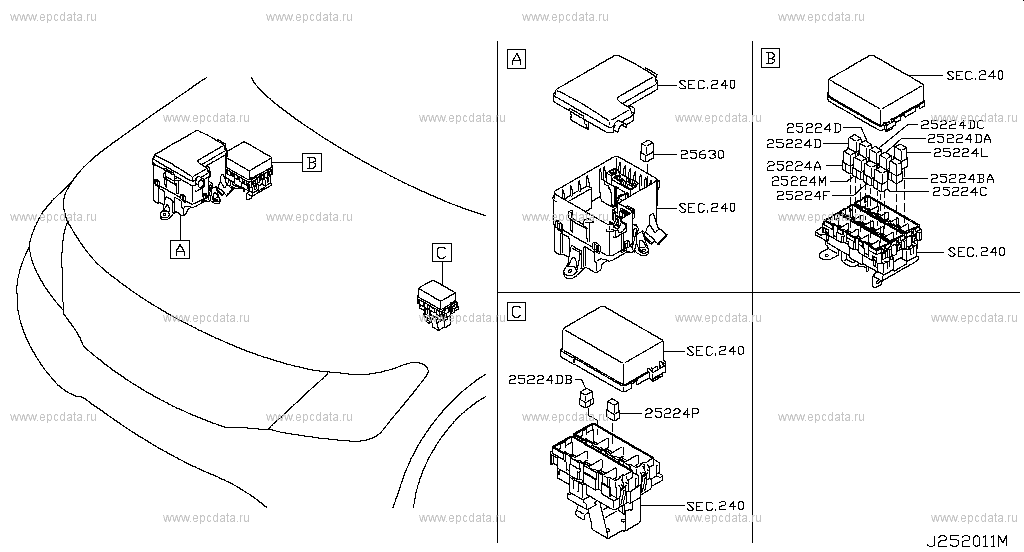

2ROW	03.2010 - ...	ENGINE ROOM

Open full screen picture Up to the top

25224A - RELAY-LIGHT 25224BA - RELAY-IGNITION 25224C - RELAY-EGI 25224D - RELAY-AIR CONDITIONER 25224DA - RELAY-AIR CONDITIONER 25224DB - RELAY-AIR CONDITIONER 25224DC - RELAY-AIR CONDITIONER 25224F - RELAY-ANTI SKID 25224L - RELAY 25224M - RELAY 25224P - RELAY-HEV 25630 - RELAY-HORN

---

Applies for models	Manufacture period	Spec

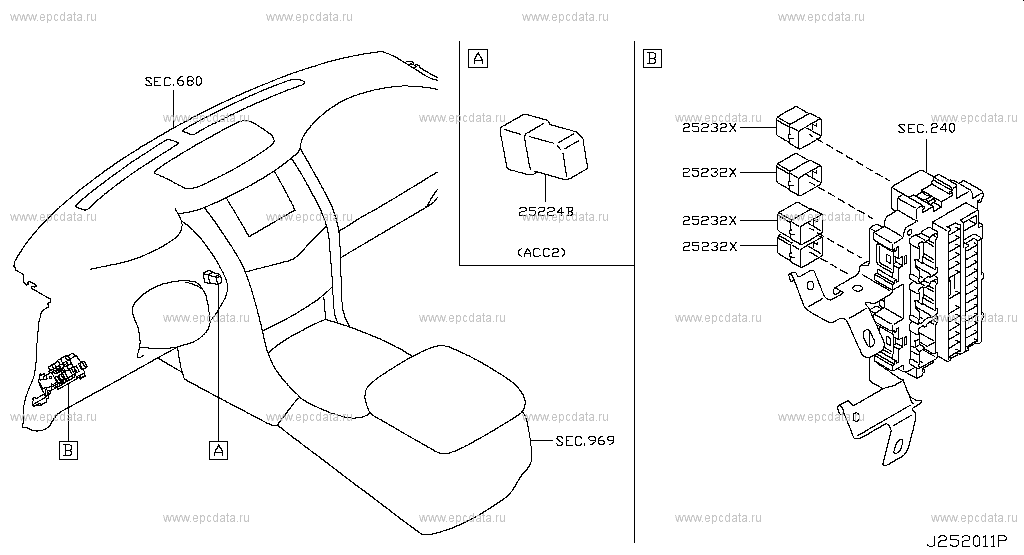

2ROW	03.2010 - ...	ROOM

Open full screen picture Up to the top

25224B - RELAY-IGNITION 25232X - RELAY

Patrol Y62
