Nissan Europe Patrol Y61 10.2002 - ...Brake 462 - BRAKE PIPING & CONTROL46211M: HOSE ASSY-BRAKE,REAR

462 - BRAKE PIPING & CONTROL for Nissan Patrol Y61

Frame / Series	Y61	BODY	W (WAGON)	ENGINE	TB48DE (TB48DE TYPE ENGINE)	SEAT	EUD.5P (EUR NORTH 5P)
Manufacture period	10.2002 - ...	GRADE	GRX (GRX TYPE)	TRANS	AT (AUTOMATIC TRANSMISSION)

46211M: HOSE ASSY-BRAKE,REAR

OEM part number	Required per car	Production period	SpecCode	Exterior	Interior	Applies for models	Notes	Replacements	Please order in advance	In stock
46211VB200	01	07.2004 - 12.2006				W.TB48DE		46211VB20A Interchangeable	12.99 to 24.17 USD
46211VB200	01	10.2002 - 07.2004				W.TB48DE		46211VB20A Interchangeable	12.99 to 24.17 USD
46211VB20A	01	12.2006 - ...				W.TB48DE			12.99 to 24.17 USD

More than 1 spare part found. Please define it more accurately before ordering.

Scheme 462A_001

Scheme 462A_002

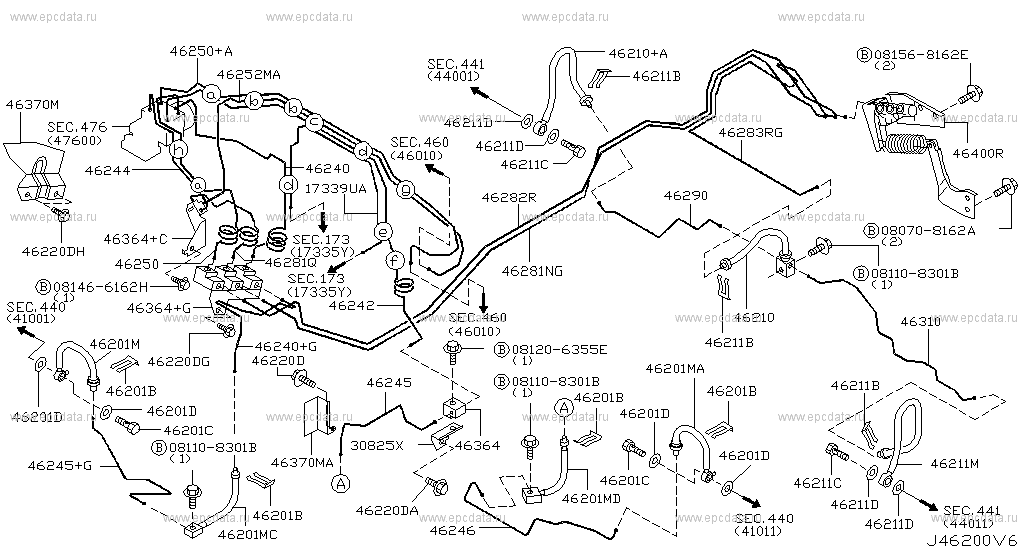

Applies for models	Manufacture period	Spec
W.TB48DE	10.2002 - ...	PIPING

Open full screen picture
Up to the top

080708162A
081108301B
081206355E
081466162H
081568162E
17339UA - TUBE-EVAPOLATION
30825X - BRACKET-CONNECTOR
46201B - SPRING-LOCK,BRAKE HOSE
46201C - BOLT-UNION,FRONT BRAKE HOSE
46201D - GASKET-BRAKE HOSE
46201M - HOSE ASSY-BRAKE,FRONT
46201MA - HOSE ASSY-BRAKE,FRONT
46201MC - HOSE ASSY-BRAKE,FRONT
46201MD - HOSE ASSY-BRAKE,FRONT
46210 - HOSE ASSY-BRAKE,REAR
46210+A - HOSE ASSY-BRAKE,REAR
46211B - SPRING-LOCK,BRAKE HOSE
46211C - BOLT-UNION,REAR BRAKE HOSE
46211D - GASKET-BRAKE HOSE
46211M - HOSE ASSY-BRAKE,REAR
46220D - SCREW
46220DA - SCREW
46220DG - SCREW
46220DH - SCREW
46240 - TUBE ASSY-BRAKE,FRONT RH
46240+G - TUBE ASSY-BRAKE,FRONT RH
46242 - TUBE ASSY-BRAKE,FRONT LH
46244 - TUBE ASSY-BRAKE,FRONT
46245 - TUBE ASSY-FRONT BRAKE,RH
46245+G - TUBE ASSY-FRONT BRAKE,RH
46246 - TUBE ASSY-FRONT BRAKE,LH
46250 - TUBE ASSY-BRAKE,FRONT MASTER CYLINDER
46250+A - TUBE ASSY-BRAKE,FRONT MASTER CYLINDER
46252MA - TUBE ASSY-BRAKE,REAR MASTER CYLINDER
46281NG - TUBE ASSY-BRAKE,CONNECTOR TO LSV
46281Q - TUBE ASSY-BRAKE
46282R - TUBE ASSY-BRAKE,LSV TO REAR
46283RG - TUBE ASSY-BRAKE
46290 - TUBE ASSY-REAR BRAKE,RH
46310 - TUBE ASSY-REAR BRAKE,LH
46364 - CONNECTOR-BRAKE TUBE
46364+C - CONNECTOR-BRAKE TUBE
46364+G - CONNECTOR-BRAKE TUBE
46370M - PROTECTOR-BRAKE TUBE
46370MA - PROTECTOR-BRAKE TUBE
46400R - VALVE ASSY-LOAD SENSING

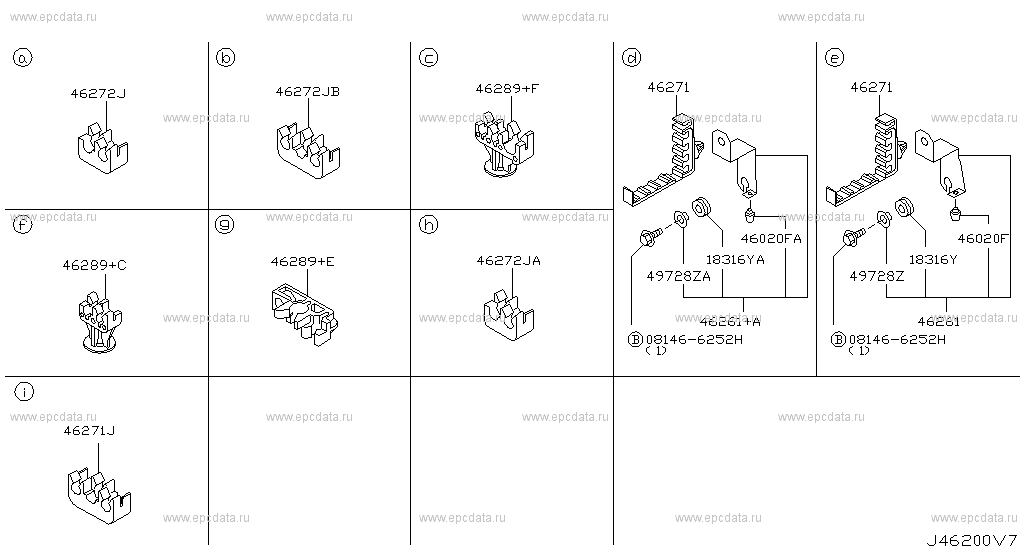

Applies for models	Manufacture period	Spec
W.TB48DE	10.2002 - ...	CLAMP & INSULATOR

Open full screen picture
Up to the top

081466252H
18316Y - INSULATOR-TUBE
18316YA - INSULATOR-TUBE
46020F - BUMPER-RUBBER
46020FA - BUMPER-RUBBER
46261 - BRACKET-BRAKE TUBE
46261+A - BRACKET-BRAKE TUBE
46271 - CLIP-TUBE,BRAKE
46271J - INSULATOR
46272J - INSULATOR
46272JA - INSULATOR
46272JB - INSULATOR
46289+C - CLAMP
46289+E - CLAMP
46289+F - CLAMP
49728Z - COLLAR-INSULATOR
49728ZA - COLLAR-INSULATOR
