Nissan EuropeJukeF15E02.2011 - ...Power train321 - TRANSMISSION CASE & CLUTCH RELEASE

321 - TRANSMISSION CASE & CLUTCH RELEASE for Nissan Juke F15E



Frame / SeriesF15E BODY5HB (5 DOOR HATCH BACK)ENGINEHR16DE (HR16DE TYPE ENGINE)AREAEUE
Manufacture period02.2011 - ...DRIVE2WD (2 WHEEL DRIVE)GRADEBASE (ACENTA GRADE)TRANSF5 (5 SPEED AUTO TRANS)


Scheme 321R_001 Scheme 321R_002
Applies for modelsManufacture periodSpec
F507.2010 - ...CLUTCH HOUSING(JR5-319)

Open full screen pictureOpen full screen picture
Up to the top

30400 - HOUSING ASSY-CLUTCH
30531B - NUT
30620X - CYLINDER ASSY-CLUTCH OPERATING
32102 - MAGNET-TRANSMISSION
32103 - PLUG-DRAIN
32103E - SEAL-OIL,DRAIN PLUG
32105WA - PIN-DOWEL
32105WB - PIN-DOWEL
32109N - CHANNEL-OIL
32120G - STUD
32120GA - STUD
32142A - BOLT
32150A - BOLT
32150AA - BOLT
38342R - SEAL-OIL,DIFFERENTIAL SIDE
Applies for modelsManufacture periodSpec

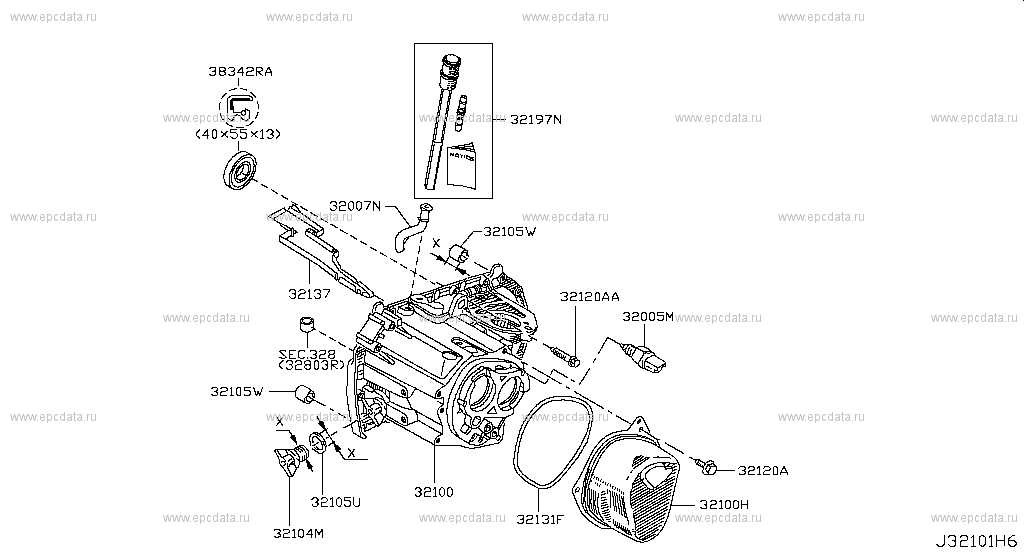

F507.2010 - ...TRANSMISSION CASE(JR5-319)

Open full screen pictureOpen full screen picture
Up to the top

32005M - SWITCH ASSY-POSITION
32007N - PIPE-BREATHER
32100 - CASE ASSY-TRANSMISSION
32100H - COVER-CASE
32104M - PLUG-GEAR OIL,FILLER
32105U - WASHER-SEAL
32105W - PIN-DOWEL
32120A - BOLT
32120AA - BOLT
32131F - SEAL-O RING
32137 - GUTTER-OIL
32197N - HOSE-BREATHER
38342RA - SEAL-OIL,DIFFERENTIAL SIDE
