750 - MEMBER for Nissan Juke F15E

	Frame / Series F15E BODY 5HB (5 DOOR HATCH BACK) ENGINE HR16DE (HR16DE TYPE ENGINE) AREA EUE Manufacture period 02.2011 - ... DRIVE 2WD (2 WHEEL DRIVE) GRADE BASE (ACENTA GRADE) TRANS F5 (5 SPEED AUTO TRANS)

---

Applies for models	Manufacture period	Spec
5HB	07.2010 - ...	FRONT

Open full screen picture Up to the top

74802N - MEMBER-SIDE,FRONT RH 74803P - MEMBER-FRONT SIDE,LH 74824 - HOOK-FRONT TIE DOWN,LH 74842N - REINFORCE-TIE DOWN HOOK 74842NA - REINFORCE-TIE DOWN HOOK 75010A - BOLT 75114M - MEMBER ASSY-FRONT SIDE FRONT.RH 75115M - MEMBER ASSY-FRONT SIDE FRONT.LH 75125 - REINFORCE ASSY-FRONT SIDE MEMBER,LH 75130N - PLATE-CLOSING,SIDE MEMBER FRONT RH 75131N - PLATE-CLOSING,SIDE MEMBER FRONT LH 75133N - REINFORCE-ENGINE MOUNTING,LH 75166 - BRACKET-BRAKE HOSE,RH 75166N - BRACKET-ADD ON FRAME,RH 75167 - BRACKET-BRAKE HOSE,LH 75167NA - BRACKET-ADD ON FRAME,LH 75170N - BRACKET-SENSOR HARNESS,RH 75171N - BRACKET-SENSOR HARNESS,LH 75920M - BRACKET-FRONT SUSPENSION MOUNTING,RH 75920MB - BRACKET-FRONT SUSPENSION MOUNTING,RH 75921M - BRACKET-FRONT SUSPENSION MOUNTING,LH 75921MB - BRACKET-FRONT SUSPENSION MOUNTING,LH

---

Applies for models	Manufacture period	Spec

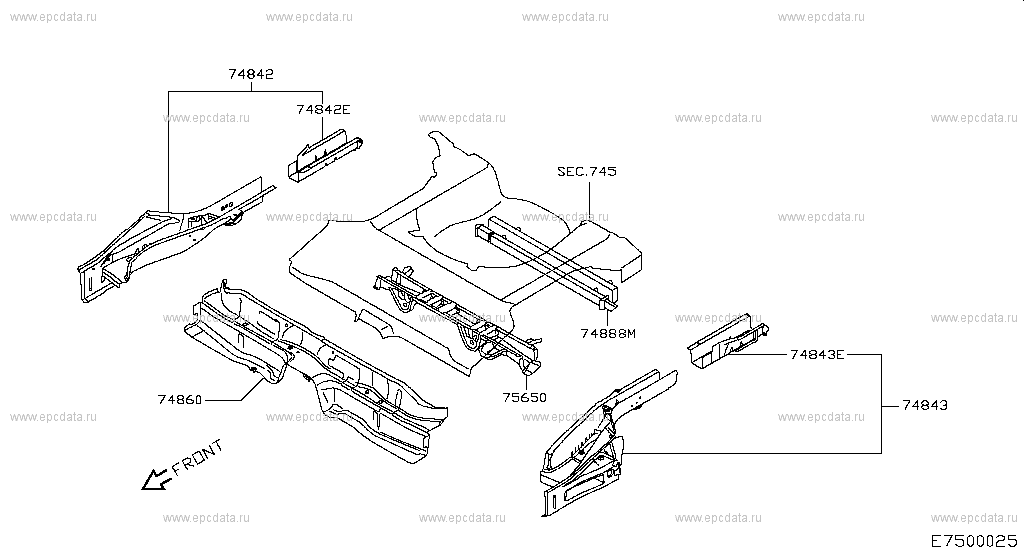

5HB	07.2010 - ...	REAR

Open full screen picture Up to the top

74842 - MEMBER-SIDE,REAR RH 74842E - EXTENSION-SIDE MEMBER,REAR RH 74843 - MEMBER-SIDE,REAR LH 74843E - EXTENSION-SIDE MEMBER,REAR LH 74860 - MEMBER ASSY-CROSS,REAR SEAT 74888M - MEMBER-7TH CROSS 75650 - MEMBER ASSY-REAR CROSS,CENTER

Juke F15E
