497 - POWER STEERING PIPING for Nissan Infiniti M35/45 Y50

	Frame / Series Y50 BODY S (SEDAN) ENGINE VK45DE (VK45DE ENGINE) DRIVE 2WD/HI (2WHEEL DRIVE HICAS) Manufacture period 01.2008 - ... GRADE SPORT (SPORT GRADE) TRANS 5AT (5 SPEED AUTO TRANS)

---

Applies for models	Manufacture period	Spec
VK45DE	08.2008 - ...

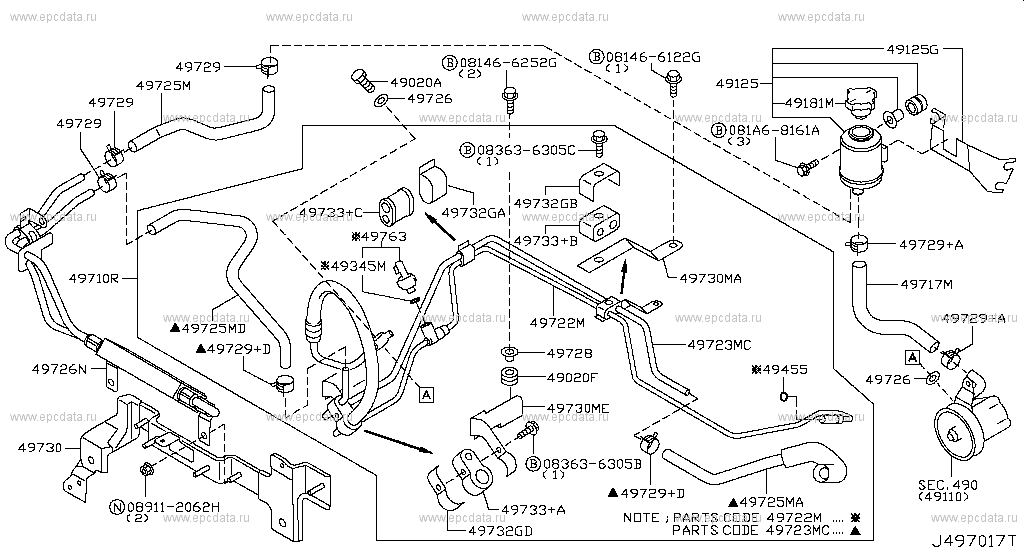

Open full screen picture Up to the top

081466122G 081466252G 081A68161A 083636305B 083636305C 089112062H 49020A - BOLT 49020F - INSULATOR 49125 - TANK ASSY-POWER STEERING RESERVOIR 49125G - BRACKET-RESERVOIR TANK 49181M - CAP ASSY-RESERVOIR 49345M - SEAL-O RING 49455 - SEAL-O RING 49710R - HOSE & TUBE SET-POWER STEERING 49717M - HOSE ASSY-SUCTION,POWER STEERING 49722M - HOSE & TUBE ASSY-PRESSURE,PS 49723MC - HOSE & TUBE ASSY-POWER STEERING 49725M - HOSE-RETURN,POWER STEERING 49725MA - HOSE-RETURN,POWER STEERING 49725MD - HOSE-RETURN,POWER STEERING 49726 - WASHER-COPPER 49726N - TUBE ASSY-RETURN,POWER STEERING 49728 - COLLAR-INSULATOR 49729 - CLAMP 49729+A - CLAMP 49729+D - CLAMP 49730 - BRACKET-TUBE 49730MA - BRACKET-TUBE 49730ME - BRACKET-TUBE 49732GA - CLAMP 49732GB - CLAMP 49732GD - CLAMP 49733+A - INSULATOR 49733+B - INSULATOR 49733+C - INSULATOR 49763 - SENSOR ASSY-PRESSURE,POWER STEERING

---

Applies for models	Manufacture period	Spec
VK45DE	07.2006 - 01.2008
VK45DE	01.2008 - 08.2008

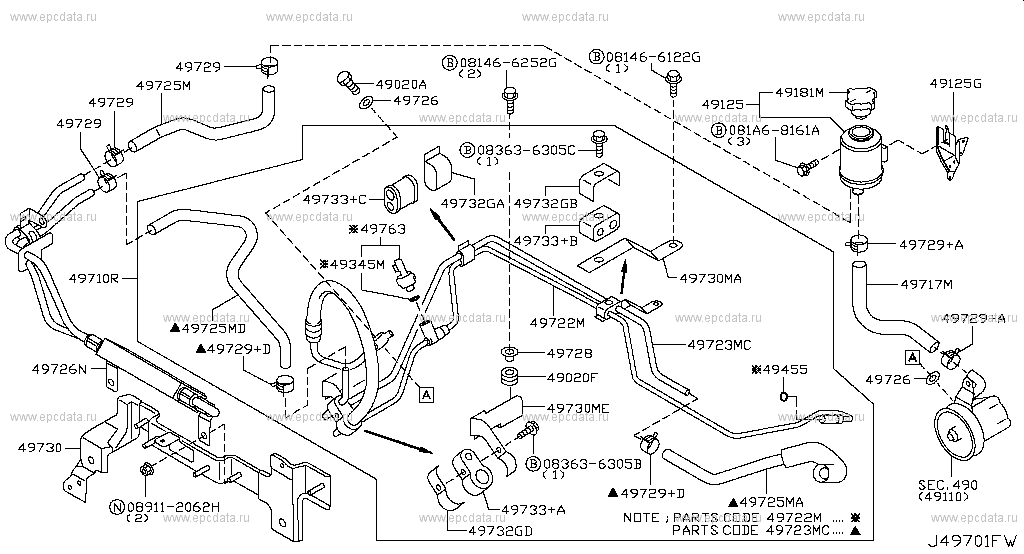

Open full screen picture Up to the top

081466122G 081466252G 081A68161A 083636305B 083636305C 089112062H 49020A - BOLT 49020F - INSULATOR 49125 - TANK ASSY-POWER STEERING RESERVOIR 49125G - BRACKET-RESERVOIR TANK 49181M - CAP ASSY-RESERVOIR 49345M - SEAL-O RING 49455 - SEAL-O RING 49710R - HOSE & TUBE SET-POWER STEERING 49717M - HOSE ASSY-SUCTION,POWER STEERING 49722M - HOSE & TUBE ASSY-PRESSURE,PS 49723MC - HOSE & TUBE ASSY-POWER STEERING 49725M - HOSE-RETURN,POWER STEERING 49725MA - HOSE-RETURN,POWER STEERING 49725MD - HOSE-RETURN,POWER STEERING 49726 - WASHER-COPPER 49726N - TUBE ASSY-RETURN,POWER STEERING 49728 - COLLAR-INSULATOR 49729 - CLAMP 49729+A - CLAMP 49729+D - CLAMP 49730 - BRACKET-TUBE 49730MA - BRACKET-TUBE 49730ME - BRACKET-TUBE 49732GA - CLAMP 49732GB - CLAMP 49732GD - CLAMP 49733+A - INSULATOR 49733+B - INSULATOR 49733+C - INSULATOR 49763 - SENSOR ASSY-PRESSURE,POWER STEERING

Infiniti M35/45 Y50
