Nissan EuropeInfiniti FX45/35S5007.2006 - ...Body(front,roof & floor)680 - INSTRUMENT PANEL, PAD & CLUSTER LID

680 - INSTRUMENT PANEL, PAD & CLUSTER LID for Nissan Infiniti FX45/35 S50



Frame / SeriesS50 BODYW (WAGON)ENGINEVK45DE (VK45DE TYPE ENGINE)TRANSAT (AUTOMATIC TRANSMISSION)
Manufacture period07.2006 - ...

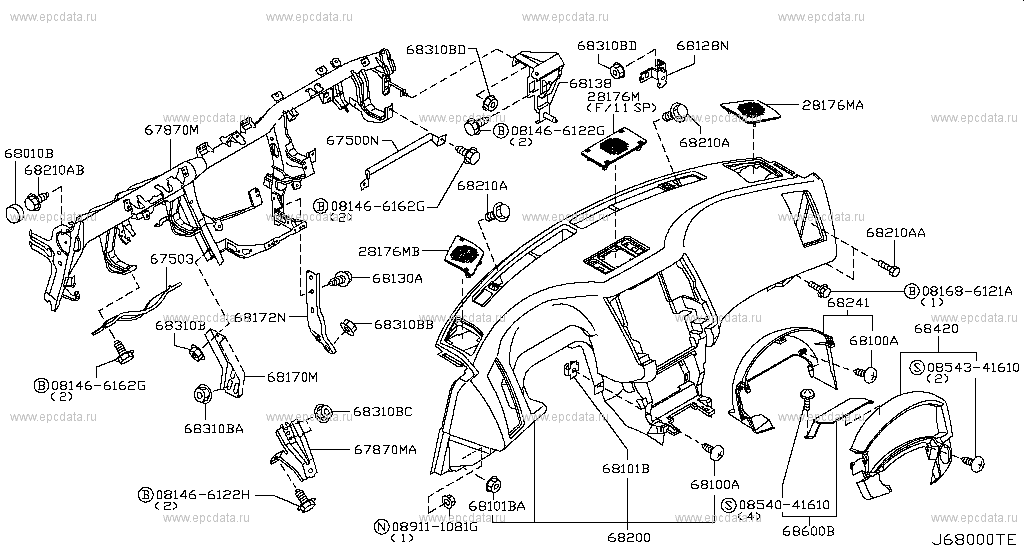

Scheme 680A_001 Scheme 680A_002
Applies for modelsManufacture periodSpec
W07.2006 - ...INST FITTING

Open full screen pictureOpen full screen picture
Up to the top

081466122G
081466122H
081466162G
081686121A
0854041610
0854341610
089111081G
28176M - GRILLE-FRONT SPEAKER
28176MA - GRILLE-FRONT SPEAKER
28176MB - GRILLE-FRONT SPEAKER
67500N - PROTECTOR ASSY-KNEE,RH UPPER
67503 - PROTECTOR ASSY-KNEE,LH
67870M - MEMBER ASSY-STEERING
67870MA - MEMBER ASSY-STEERING
68010B - NUT
68100A - SCREW
68101B - NUT
68101BA - NUT
68128N - BRACKET-INSTRUMENT SIDE
68130A - BOLT
68138 - BRACKET-INSTRUMENT MEMBER,RH
68170M - STAY ASSY-INSTRUMENT
68172N - STAY ASSY-INSTRUMENT,ASSIST
68200 - PANEL & PAD ASSY-INSTRUMENT
68210A - BOLT
68210AA - BOLT
68210AB - BOLT
68241 - LID-CLUSTER
68310B - NUT
68310BA - NUT
68310BB - NUT
68310BC - NUT
68310BD - NUT
68420 - LID-CLUSTER
68600B - BRACKET-HAZARD
Applies for modelsManufacture periodSpec
W07.2006 - ...INST PAD & CLUSTER LID

Open full screen pictureOpen full screen picture
Up to the top

081686161A
24860M - SOCKET & BULB
48433C - BOLT
68106M - PANEL-INSTRUMENT LOWER,DRIVER
68108N - PANEL-INSTRUMENT LOWER,ASSIST
68134 - PANEL-INSTRUMENT SIDE,RH
68135 - PANEL-INSTRUMENT SIDE,LH
68196A - SCREW
68196AA - SCREW
68200 - PANEL & PAD ASSY-INSTRUMENT
68520 - LID-CLUSTER
68520A - SCREW
68520AA - SCREW
68600 - BOX ASSY-GLOVE
68600AA - SCREW
68600AB - SCREW
68630 - LOCK ASSY-GLOVE BOX LID
68640 - STRIKER-GLOVE BOX LID
68901 - COVER-INSTRUMENT LOWER,LH
98515 - MODULE ASSY-AIR BAG,ASSIST
98591M - LABEL-AIR BAG
