111 - CYLINDER HEAD & ROCKER COVER for Nissan Almera N16E

	Frame / Series N16E BODY 3HB (3 DOOR HATCH BACK) ENGINE QG15DE (QG15DE TYPE ENGINE) AREA EUC (CENTRAL EUROPE SPEC) Manufacture period 08.2002 - ... POWER 72KW GRADE EP2 (EP2 TYPE) TRANS F5 (5-SPEED MANUAL TRANS)

---

Applies for models	Manufacture period	Spec
QG15DE +QG18DE	03.2001 - 08.2002	ASSEMBLY

Open full screen picture Up to the top

11044 - GASKET-CYLINDER HEAD 13264 - COVER ASSY-VALVE ROCKER 13264A - BOLT-ROCKER COVER 13270 - GASKET-ROCKER COVER 15255 - CAP ASSY-OIL FILLER 15255A - PACKING-OIL FILLER CAP

---

Applies for models	Manufacture period	Spec
QG15DE +QG18DE	03.2001 - 08.2002	COMPONENT PARTS

Open full screen picture Up to the top

009331201A 081208161E 081210201E 081A06161A 081B06351A 089183061A 10005 - SLINGER-ENGINE 10006 - SLINGER-ENGINE 11024A - PIN-DOWEL 11041 - HEAD ASSY-CYLINDER 11041B - STUD 11046 - COVER-CYLINDER HEAD 11048A - PLUG-THREAD 11048B - PLUG-THREAD 11048BA - PLUG-THREAD 11056 - BOLT-CYLINDER HEAD 11056A - BOLT 11056AA - BOLT 11056C - WASHER-PLAIN 11095 - TUBE-SPARK PLUG 11098 - SEAT-VALVE,INTAKE 11099 - SEAT-VALVE,EXHAUST 13058 - BOLT-CAMSHAFT BRACKET 13212 - GUIDE-VALVE,INTAKE 13213 - GUIDE-VALVE,EXHAUST 13270Z - GASKET-LIQUID

---

Applies for models	Manufacture period	Spec

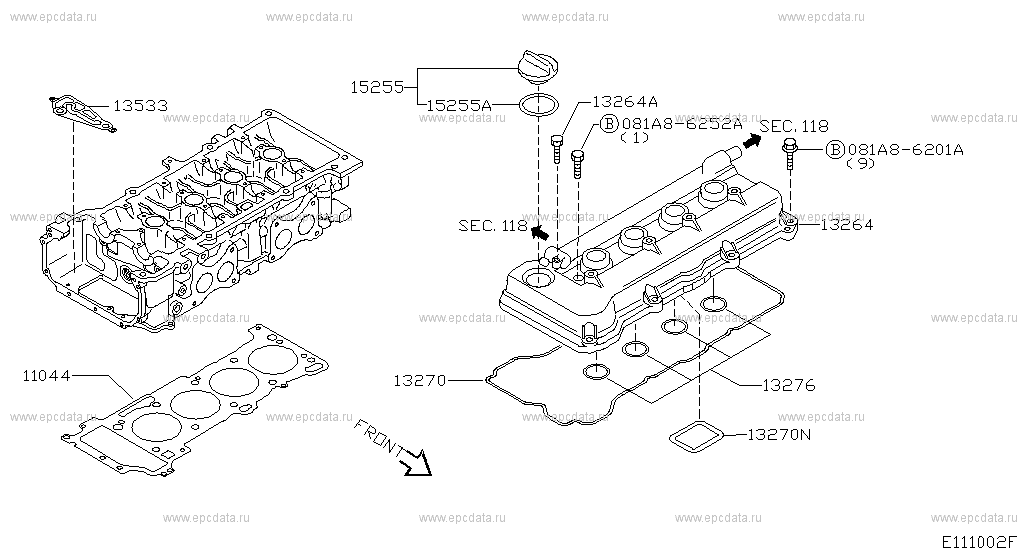

QG15DE +QG18DE	08.2002 - ...	ASSEMBLY

Open full screen picture Up to the top

081A86201A 081A86252A 11044 - GASKET-CYLINDER HEAD 13264 - COVER ASSY-VALVE ROCKER 13264A - BOLT-ROCKER COVER 13270 - GASKET-ROCKER COVER 13270N - GASKET-ROCKER COVER 13276 - SEAL-OIL,ROCKER COVER 13533 - GASKET-OIL GALLERY 15255 - CAP ASSY-OIL FILLER 15255A - PACKING-OIL FILLER CAP

---

Applies for models	Manufacture period	Spec
QG15DE +QG18DE	08.2002 - ...	COMPONENT PARTS

Open full screen picture Up to the top

009331201A 081208161E 081210201E 081A06121A 081B06401A 089183061A 10005 - SLINGER-ENGINE 10006 - SLINGER-ENGINE 11024A - PIN-DOWEL 11041 - HEAD ASSY-CYLINDER 11041B - STUD 11046 - COVER-CYLINDER HEAD 11046F - DOWEL-CYLINDER HEAD 11048A - PLUG-THREAD 11048B - PLUG-THREAD 11048BA - PLUG-THREAD 11056 - BOLT-CYLINDER HEAD 11056A - BOLT 11056AA - BOLT 11056C - WASHER-PLAIN 11095 - TUBE-SPARK PLUG 11098 - SEAT-VALVE,INTAKE 11099 - SEAT-VALVE,EXHAUST 13058 - BOLT-CAMSHAFT BRACKET 13212 - GUIDE-VALVE,INTAKE 13213 - GUIDE-VALVE,EXHAUST 13270Z - GASKET-LIQUID

Almera N16E
