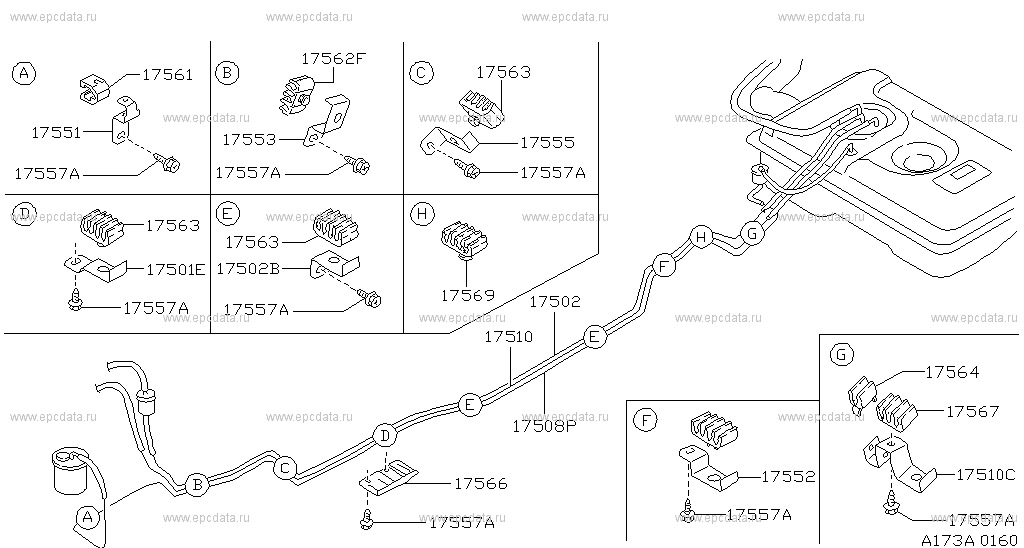

173 - FUEL PIPING for Nissan 300ZX Z31

	Frame / Series Z31 ROOF C (NON T-BAR ROOF MODEL) ENGINE VG30 (VG30 TYPE ENGINE) GRADE GL (GL TYPE) Manufacture period 05.1983 - ... TRANS ATM (AUTOMATIC TRANSMISSION) SEAT 4S (2+2 SEATER) ARER EXC.EC (EXCEPT EC)

---

Applies for models	Manufacture period	Spec
ALL	05.1983 - ...	WITHOUT ANTI SKID

Open full screen picture Up to the top

17501E - CLAMP 17502 - TUBE-FUEL,NO 1 17502B - CLAMP 17508P - TUBE-EVAPORATION 17510 - TUBE-FUEL RETURN 17510C - CLAMP 17551 - CLIP-FUEL TUBE,NO 1 17552 - CLIP-FUEL TUBE,NO 2 17553 - CLIP-FUEL TUBE,NO 3 17555 - CLIP-FUEL TUBE,NO 5 17557A - SCREW 17561 - INSULATOR 17562F - INSULATOR-FUEL TUBE 17563 - INSULATOR-FUEL TUBE,NO 3 17564 - INSULATOR-FUEL TUBE,NO 4 17566 - PROTECTOR-FUEL TUBE 17567 - INSULATOR-FUEL TUBE,NO 6 17569 - INSULATOR-FUEL TUBE,NO 7

---

Applies for models	Manufacture period	Spec
ALL	05.1983 - ...	WITH ANTI SKID

Open full screen picture Up to the top

17050G - CLIP 17501D - CLAMP 17501J - CLAMP 17502 - TUBE-FUEL,NO 1 17502B - CLAMP 17505D - CLAMP 17510 - TUBE-FUEL RETURN 17510C - CLAMP 17551 - CLIP-FUEL TUBE,NO 1 17552 - CLIP-FUEL TUBE,NO 2 17553 - CLIP-FUEL TUBE,NO 3 17553G - CLIP 17554 - CLIP-FUEL TUBE,NO 4 17557A - SCREW 17562 - INSULATOR-FUEL TUBE 17562E - INSULATOR-FUEL TUBE 17562F - INSULATOR-FUEL TUBE 17564 - INSULATOR-FUEL TUBE,NO 4 17564F - INSULATOR-FUEL TUBE 17565 - INSULATOR-FUEL TUBE,NO 5 17566 - PROTECTOR-FUEL TUBE 17567 - INSULATOR-FUEL TUBE,NO 6 17569 - INSULATOR-FUEL TUBE,NO 7

300ZX Z31
