240 - WIRING for Nissan 200SX S14
| |||||||||||||||||||
24012: HARNESS-ENGINE ROOM
More than 1 spare part found. Please define it more accurately before ordering. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| C | 04.1994 - ... | ENGINE ROOM |
| 24012 - HARNESS-ENGINE ROOM 24075N - HARNESS-SUB,ENGINE 24077M - HARNESS ASSY-ENGINE 24078 - HARNESS-EGI 24080 - CABLE ASSY-BATTERY EARTH 24370 - CONNECTOR ASSY-FUSIBLE LINK 24380N - BOX ASSY-RELAY 24382V - COVER-RELAY BOX 24382VA - COVER-RELAY BOX 24383P - HOUSING-RELAY BOX 24388M - BRACKET-RELAY 25233Q - COVER-RELAY BOX 25233QA - COVER-RELAY BOX 25410L - BLOCK ASSY-FUSE 25411 - HOLDER-FUSIBLE LINK 25411+A - HOLDER-FUSIBLE LINK |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| C | 04.1994 - ... | ENGINE ROOM FITTING |
| 24014B - SCREW 24214B - NUT-FLANGE 24215M - CLIP-WIRING HARNESS 24215MA - CLIP-WIRING HARNESS 24215MB - CLIP-WIRING HARNESS 24215MC - CLIP-WIRING HARNESS 24225 - CAP-TERMINAL 24225+A - CAP-TERMINAL 24226B - CLIP-WIRING HARNESS 24230M - BRACKET 24230MB - BRACKET 24236P - BRACKET-CONNECTOR 24276M - PROTECTOR-HARNESS 24276Q - PROTECTOR-HARNESS 24336F - RESISTOR 24345M - COVER-CONNECTOR 24388P - BRACKET-RELAY BOX |

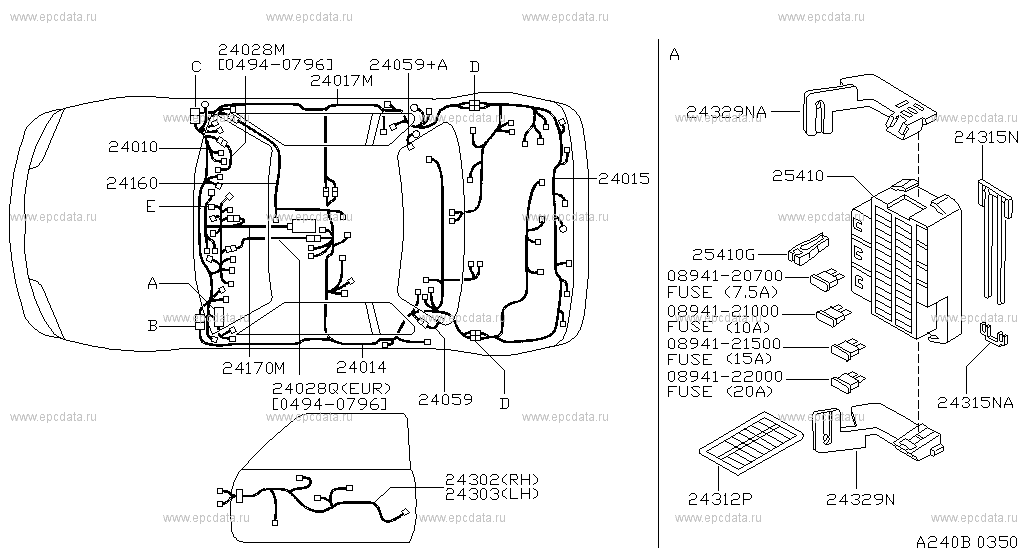

| Applies for models | Manufacture period | Spec |
|---|---|---|
| C | 04.1994 - 10.1998 | BODY |
| 0894120700 0894121000 0894121500 0894122000 24010 - HARNESS-MAIN 24014 - HARNESS-BODY 24015 - HARNESS-TAIL 24017M - HARNESS-SUB,BODY 24028M - HARNESS-SUB,MAIN 24028Q - HARNESS-SUB 24059 - HARNESS-DEFOGGER,EARTH 24059+A - HARNESS-DEFOGGER,EARTH 24160 - HARNESS-ROOM LAMP 24170M - HARNESS-AIR BAG,ROOM 24302 - HARNESS-FRONT DOOR,RH 24303 - HARNESS-FRONT DOOR,LH 24312P - LABEL-FUSE BLOCK 24315N - RETAINER-FUSE BLOCK 24315NA - RETAINER-FUSE BLOCK 24329N - BRACKET-FUSE BLOCK 24329NA - BRACKET-FUSE BLOCK 25410 - BLOCK ASSY-FUSE 25410G - PULLER-FUSE |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| C | 04.1994 - ... | BODY FITTING |
| 24015D - SCREW 24015DA - SCREW 24015DB - SCREW 24015H - GROMMET-SCREW 24130N - DIODE 24215R - CLIP-WIRING HARNESS 24226D - CLIP-WIRING HARNESS 24229A - BRACKET-JUNCTION 24269XA - PLUG-BLIND 24274 - PROTECTOR-HARNESS 24276QA - PROTECTOR-HARNESS 24279 - INSULATOR-CLAMP 24295 - PLUG 24350P - BLOCK ASSY-JUNCTION 24350PA - BLOCK ASSY-JUNCTION 25254K - GROMMET |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| C | 10.1998 - ... | BODY |
| 0894120700 0894121000 0894121500 0894122000 24010 - HARNESS-MAIN 24014 - HARNESS-BODY 24015 - HARNESS-TAIL 24017M - HARNESS-SUB,BODY 24059 - HARNESS-DEFOGGER,EARTH 24059+A - HARNESS-DEFOGGER,EARTH 24160 - HARNESS-ROOM LAMP 24170M - HARNESS-AIR BAG,ROOM 24302 - HARNESS-FRONT DOOR,RH 24303 - HARNESS-FRONT DOOR,LH 24312P - LABEL-FUSE BLOCK 24315N - RETAINER-FUSE BLOCK 24315NA - RETAINER-FUSE BLOCK 24329N - BRACKET-FUSE BLOCK 24329NA - BRACKET-FUSE BLOCK 25410 - BLOCK ASSY-FUSE 25410G - PULLER-FUSE |
| Applies for models | Manufacture period | Spec |
|---|---|---|

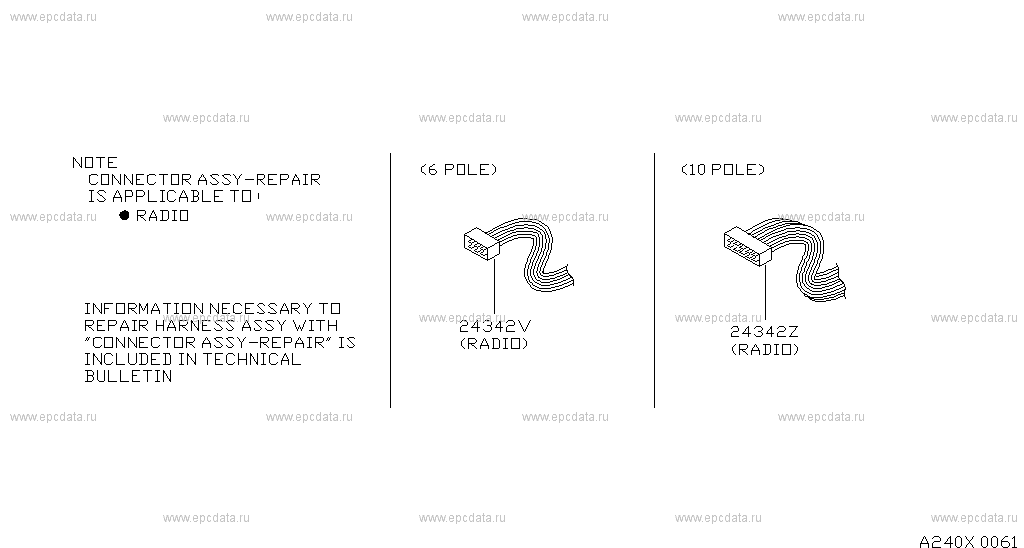

| C | 04.1994 - 10.1998 | CONNECTOR ASSY-REPAIR |
| 24342V - CONNECTOR ASSY-HARNESS REPAIR,6P 24342Z - CONNECTOR ASSY-HARNESS REPAIR |
