160 - CARBURETOR for Nissan 100NX B13

	Frame / Series B13 BODY C/T (COUPE T/BAR) ENGINE GA16DS (GA16DS TYPE ENGINE) AREA EUR/C Manufacture period 10.1990 - 10.1992 GRADE T/A (TYPE A GRADE) TRANS AT (AUTOMATIC TRANSMISSION)

---

Applies for models	Manufacture period	Spec
(EUR/C+EUR/D).GA16DS	10.1990 - 10.1992	ASSY AND SCREW KIT(EUR)

Open full screen picture Up to the top

16010 - CARBURETOR 16010G - PLUG 16174+A - INSULATOR-CARBURETOR 16230A - BOLT 16455 - GASKET KIT 16465 - SCREW & WASHER KIT 16475 - SCREW & WASHER KIT-B

---

Applies for models	Manufacture period	Spec
(EUR/C+EUR/D).GA16DS	10.1990 - 10.1992	CHOKE CHAMBER COMPONENTS

Open full screen picture Up to the top

16011 - CHAMBER ASSY-CHOKE 16033+A - JET-MAIN 16033+B - JET-MAIN 16053 - JET-STEP 16054 - JET-SLOW 16054G - PLUG 16061 - FLOAT 16061E - COLLAR-FLOAT PIN 16063 - COVER-GAUGE LEVER 16071 - WEIGHT-INJECTOR 16071J - SPRING-INJECTOR 16090EA - CLAMP-HOSE 16101 - VALVE-NEEDLE 16116+V - SLEEVE-A 16125 - GAUGE-LEVEL 16137M - PLATE-STOPPING,REAR 16138+A - LEVER-LOCK 16148 - SPRING-RETURN,PISTON 16151 - PISTON 16196MH - IACV-FICD SOLENOID VALVE 16204 - BLEED-SLOW AIR 16208+B - BLEED-MAIN AIR 16208+C - BLEED-MAIN AIR 16208+H - BLEED-MAIN AIR 16217F - COLLAR 16245 - STRAINER-PUMP 16245E - CLIP-STRAINER PUMP 16267 - PIPE-RUBBER 16302 - LEVER-PUMP 16388EA - PISTON-CHOKE 16389 - COVER-THERMO 16389H - PLATE-THERMO COVER 16452 - SPRING-PUMP LEVER

---

Applies for models	Manufacture period	Spec

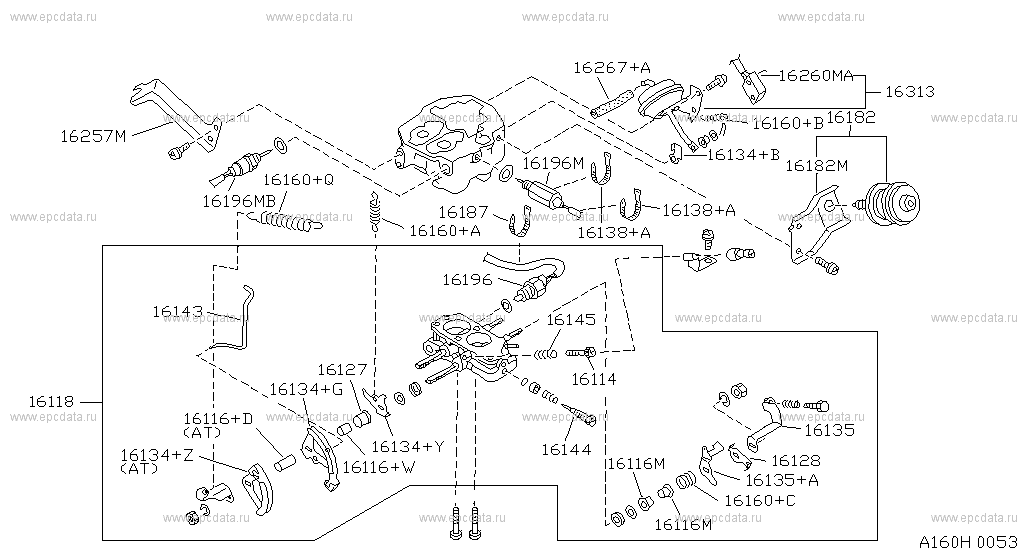

(EUR/C+EUR/D).GA16DS	10.1990 - 10.1992	THROTTLE CHAMBER COMPONENTS

Open full screen picture Up to the top

16114 - SCREW-ADJUST,THROTTLE 16116+D - SLEEVE-A 16116+W - SLEEVE-A 16116M - SLEEVE-B 16118 - THROTTLE BODY 16127 - PLATE-RETURN 16128 - CAM-FAST IDLE 16134+B - LEVER-THROTTLE 16134+G - LEVER-THROTTLE 16134+Y - LEVER-THROTTLE 16134+Z - LEVER-THROTTLE 16135 - IACV-FICD LEVER 16135+A - IACV-FICD LEVER 16138+A - LEVER-LOCK 16143 - ROD-PUMP 16144 - SCREW-ADJUST,IDLE 16145 - SPRING-SCREW,ADJUST 16160+A - SPRING-THROTTLE PRIMARY 16160+B - SPRING-THROTTLE PRIMARY 16160+C - SPRING-THROTTLE PRIMARY 16160+Q - SPRING-THROTTLE PRIMARY 16182 - IDLE SPEED CONTROL-FI POT 16182M - BRACKET 16187 - HOLDER-HARNESS 16196 - IACV-FICD SOLENOID VALVE 16196M - IACV-FICD SOLENOID VALVE 16196MB - IACV-FICD SOLENOID VALVE 16257M - HOLDER-THROTTLE WIRE 16260MA - SWITCH-MICRO 16267+A - PIPE-RUBBER 16313 - DIAPHRAGM ASSY-CHAMBER

100NX B13
