287 - REAR WINDOW WIPER for Nissan Terrano R50



Frame / SeriesR50 BODYW (WAGON)ENGINEVQ35DE (VQ35DE TYPE ENGINE)WHL.DRVF/4WD
Manufacture period07.2000 - ...GRADESE (SE TYPE)TRANSAT (AUTOMATIC TRANSMISSION)

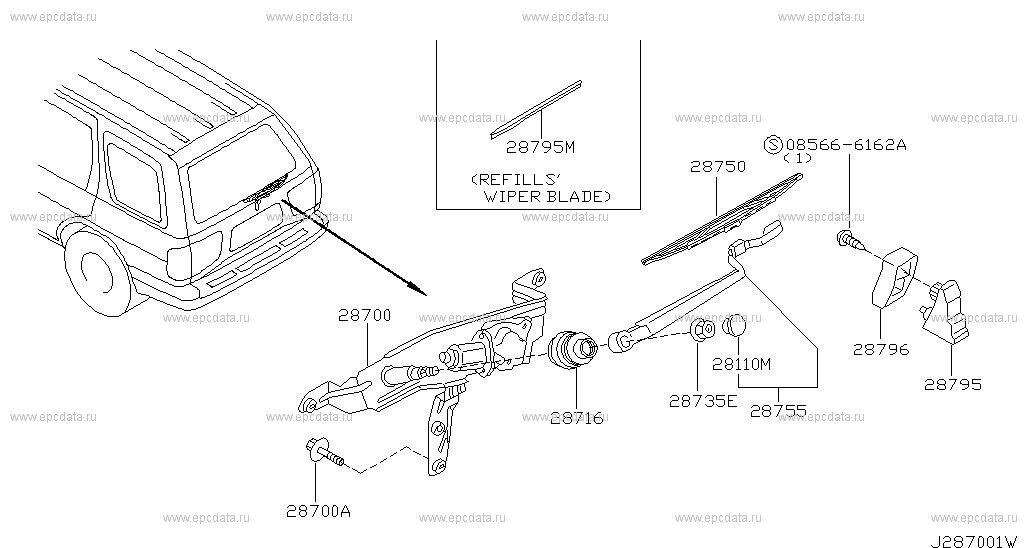

Scheme 287B_001 Scheme 287B_002
Applies for modelsManufacture periodSpec
W07.2000 - 09.2001

Open full screen pictureOpen full screen picture
Up to the top

085666162A
28110M - COVER-REAR WIPER ARM
28700 - DRIVE ASSY-REAR WINDOW WIPER
28700A - SCREW
28715 - WASHER & SEAL KIT-PIVOT,B
28735E - NUT
28750 - BLADE ASSY-REAR WINDOW WIPER
28755 - ARM ASSY-REAR WINDOW WIPER
28795 - LIFTER-BACK WINDOW WIPER
28795M - REFILL-REAR WIPER BLADE
28796 - SPACER-REAR WIPER LIFTER

Applies for modelsManufacture periodSpec
W09.2001 - ...

Open full screen pictureOpen full screen picture
Up to the top

085666162A
28110M - COVER-REAR WIPER ARM
28700 - DRIVE ASSY-REAR WINDOW WIPER
28700A - SCREW
28716 - SEAL-PIVOT
28735E - NUT
28750 - BLADE ASSY-REAR WINDOW WIPER
28755 - ARM ASSY-REAR WINDOW WIPER
28795 - LIFTER-BACK WINDOW WIPER
28795M - REFILL-REAR WIPER BLADE
28796 - SPACER-REAR WIPER LIFTER

Nissan Terrano genuine parts
